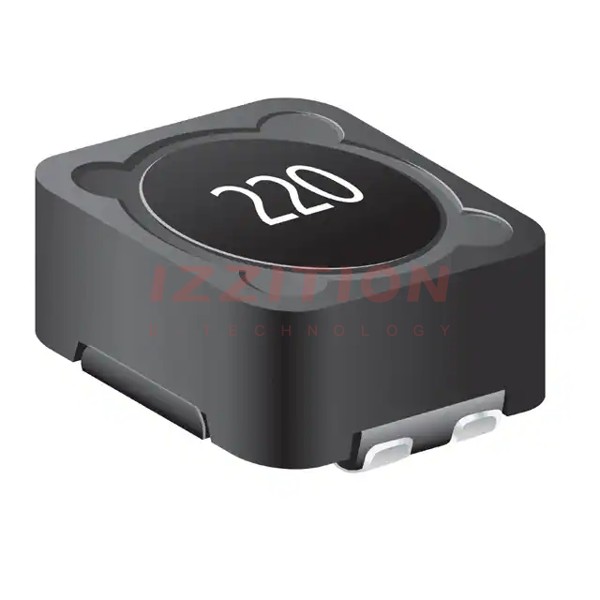

| Part Number | SRF1260-820M | SRF1280-820M | SRF1260-821M | SRF1260A-820M | SRF1260-220M |
|---|---|---|---|---|---|
| Manufacturer | Bourns Inc. | Bourns Inc. | Bourns Inc. | Bourns Inc. | Bourns Inc. |
| Product Status | Active | Active | Active | Active | Active |
| Number of Coils | 2 | 2 | 2 | 2 | 2 |
| Inductance - Connected In Parallel | 82 µH | 82 µH | 820 µH | 82 µH | 22 µH |
| Inductance - Connected In Series | 328 µH | 328 µH | 3.28 mH | 328 µH | 88 µH |
| Tolerance | ±20% | ±20% | ±20% | ±20% | ±20% |
| Current Rating - Parallel | 2.05 A | 2.09 A | 600 mA | 2.05 A | 3.7 A |
| Current Rating - Series | 1.03 A | 1.04 A | 301 mA | 1.03 A | 1.84 A |
| Current Saturation - Parallel | 2.39 A | 4.06 A | 770 mA | 2.39 A | 4.71 A |
| Current Saturation - Series | 1.2 A | 2.03 A | 385 mA | 1.2 A | 2.36 A |
| DC Resistance (DCR) - Parallel | 150mOhm Max | 153mOhm Max | 1.46Ohm Max | 150mOhm Max | 45.1mOhm Max |
| DC Resistance (DCR) - Series | 568mOhm Max | 578mOhm Max | 5.363Ohm Max | 568mOhm Max | 172mOhm Max |
| Shielding | Shielded | Shielded | Shielded | Shielded | Shielded |
| Ratings | - | - | - | AEC-Q200 | - |
| Operating Temperature | -40°C ~ 125°C | -40°C ~ 125°C | -40°C ~ 125°C | -40°C ~ 125°C | -40°C ~ 125°C |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | Nonstandard | Nonstandard | Nonstandard | Nonstandard | Nonstandard |
| Size / Dimension | 0.492" L x 0.492" W (12.50mm x 12.50mm) | 0.492" L x 0.492" W (12.50mm x 12.50mm) | 0.492" L x 0.492" W (12.50mm x 12.50mm) | 0.492" L x 0.492" W (12.50mm x 12.50mm) | 0.492" L x 0.492" W (12.50mm x 12.50mm) |
| Height | 0.244" (6.20mm) | 0.315" (8.00mm) | 0.244" (6.20mm) | 0.244" (6.20mm) | 0.244" (6.20mm) |
