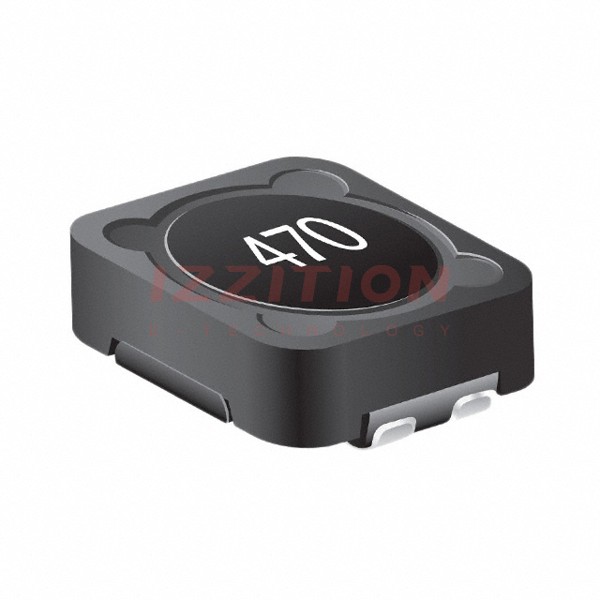

| Part Number | SRF0703A-680M | SRF0703-680M |
|---|---|---|
| Manufacturer | Bourns Inc. | Bourns Inc. |
| Product Status | Active | Active |
| Number of Coils | 2 | 2 |
| Inductance - Connected In Parallel | 68 µH | 68 µH |
| Inductance - Connected In Series | 289.3 µH | 272 µH |
| Tolerance | ±20% | ±20% |
| Current Rating - Parallel | 890 mA | 890 mA |
| Current Rating - Series | 444 mA | 444 mA |
| Current Saturation - Parallel | 960 mA | 960 mA |
| Current Saturation - Series | 480 mA | 480 mA |
| DC Resistance (DCR) - Parallel | 507mOhm Max | 507mOhm Max |
| DC Resistance (DCR) - Series | 1.92Ohm Max | 1.92Ohm Max |
| Shielding | Shielded | Shielded |
| Ratings | AEC-Q200 | - |
| Operating Temperature | -40°C ~ 125°C | -40°C ~ 125°C |
| Mounting Type | Surface Mount | Surface Mount |
| Package / Case | Nonstandard | Nonstandard |
| Size / Dimension | 0.299" L x 0.299" W (7.60mm x 7.60mm) | 0.299" L x 0.299" W (7.60mm x 7.60mm) |
| Height | 0.142" (3.60mm) | 0.142" (3.60mm) |
