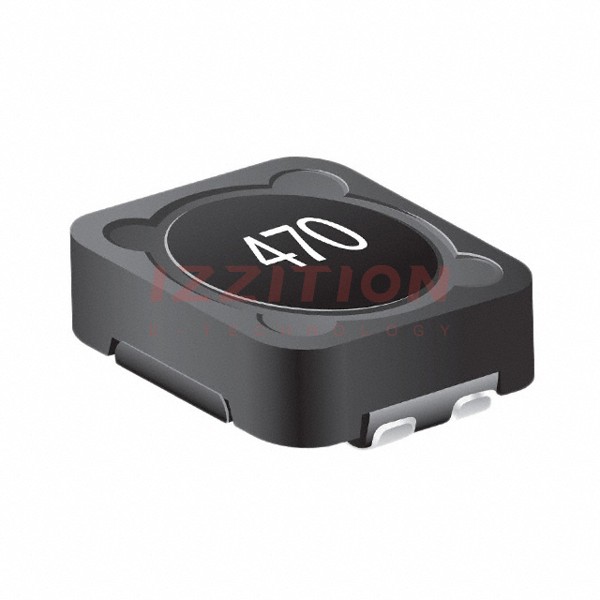

| Part Number | SRF0703A-150M | SRF0703A-151M | SRF0703-150M | SRF0703A-100M |
|---|---|---|---|---|
| Manufacturer | Bourns Inc. | Bourns Inc. | Bourns Inc. | Bourns Inc. |
| Product Status | Active | Active | Active | Active |
| Number of Coils | 2 | 2 | 2 | 2 |
| Inductance - Connected In Parallel | 15 µH | 150 µH | 15 µH | 10 µH |
| Inductance - Connected In Series | 59.6 µH | 608.2 µH | 60 µH | 39.6 µH |
| Tolerance | ±20% | ±20% | ±20% | ±20% |
| Current Rating - Parallel | 1.83 A | 580 mA | 1.83 A | 2.08 A |
| Current Rating - Series | 916 mA | 289 mA | 916 mA | 1.04 A |
| Current Saturation - Parallel | 2.05 A | 650 mA | 2.05 A | 2.47 A |
| Current Saturation - Series | 1.03 A | 320 mA | 1.03 A | 1.24 A |
| DC Resistance (DCR) - Parallel | 119mOhm Max | 986mOhm Max | 119mOhm Max | 82.6mOhm Max |
| DC Resistance (DCR) - Series | 470mOhm Max | 3.63Ohm Max | 470mOhm Max | 342mOhm Max |
| Shielding | Shielded | Shielded | Shielded | Shielded |
| Ratings | AEC-Q200 | AEC-Q200 | - | AEC-Q200 |
| Operating Temperature | -40°C ~ 125°C | -40°C ~ 125°C | -40°C ~ 125°C | -40°C ~ 125°C |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | Nonstandard | Nonstandard | Nonstandard | Nonstandard |
| Size / Dimension | 0.299" L x 0.299" W (7.60mm x 7.60mm) | 0.299" L x 0.299" W (7.60mm x 7.60mm) | 0.299" L x 0.299" W (7.60mm x 7.60mm) | 0.299" L x 0.299" W (7.60mm x 7.60mm) |
| Height | 0.142" (3.60mm) | 0.142" (3.60mm) | 0.142" (3.60mm) | 0.142" (3.60mm) |
