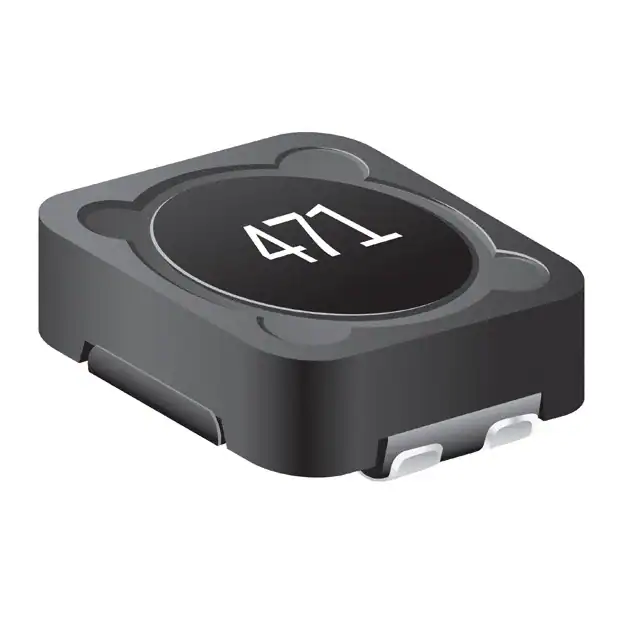

| Part Number | SRF0703-8R2M | SRF0703A-8R2M | SRF0703-2R2M |
|---|---|---|---|
| Manufacturer | Bourns Inc. | Bourns Inc. | Bourns Inc. |
| Product Status | Active | Active | Active |
| Number of Coils | 2 | 2 | 2 |
| Inductance - Connected In Parallel | 8.2 µH | 8.2 µH | 2.2 µH |
| Inductance - Connected In Series | 32.8 µH | 34.1 µH | 8.8 µH |
| Tolerance | ±20% | ±20% | ±20% |
| Current Rating - Parallel | 2.19 A | 2.19 A | 4.11 A |
| Current Rating - Series | 1.1 A | 1.1 A | 2.06 A |
| Current Saturation - Parallel | 2.66 A | 2.66 A | 5.52 A |
| Current Saturation - Series | 1.33 A | 1.33 A | 2.76 A |
| DC Resistance (DCR) - Parallel | 77.2mOhm Max | 77.2mOhm Max | 21.7mOhm Max |
| DC Resistance (DCR) - Series | 306mOhm Max | 306mOhm Max | 132mOhm Max |
| Shielding | Shielded | Shielded | Shielded |
| Ratings | - | AEC-Q200 | - |
| Operating Temperature | -40°C ~ 125°C | -40°C ~ 125°C | -40°C ~ 125°C |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | Nonstandard | Nonstandard | Nonstandard |
| Size / Dimension | 0.299" L x 0.299" W (7.60mm x 7.60mm) | 0.299" L x 0.299" W (7.60mm x 7.60mm) | 0.299" L x 0.299" W (7.60mm x 7.60mm) |
| Height | 0.142" (3.60mm) | 0.142" (3.60mm) | 0.142" (3.60mm) |
