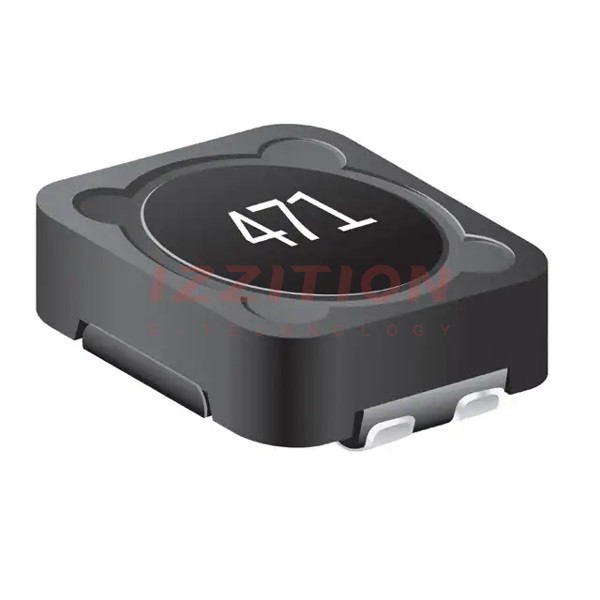

| Part Number | SRF0703-331M | SRF0703-330M |
|---|---|---|
| Manufacturer | Bourns Inc. | Bourns Inc. |
| Product Status | Active | Active |
| Number of Coils | 2 | 2 |
| Inductance - Connected In Parallel | 330 µH | 33 µH |
| Inductance - Connected In Series | 1.32 mH | 132 µH |
| Tolerance | ±20% | ±20% |
| Current Rating - Parallel | 420 mA | 1.31 A |
| Current Rating - Series | 211 mA | 653 mA |
| Current Saturation - Parallel | 440 mA | 1.35 A |
| Current Saturation - Series | 220 mA | 680 mA |
| DC Resistance (DCR) - Parallel | 2.16Ohm Max | 240mOhm Max |
| DC Resistance (DCR) - Series | 8.25Ohm Max | 1Ohm Max |
| Shielding | Shielded | Shielded |
| Ratings | - | - |
| Operating Temperature | -40°C ~ 125°C | -40°C ~ 125°C |
| Mounting Type | Surface Mount | Surface Mount |
| Package / Case | Nonstandard | Nonstandard |
| Size / Dimension | 0.299" L x 0.299" W (7.60mm x 7.60mm) | 0.299" L x 0.299" W (7.60mm x 7.60mm) |
| Height | 0.142" (3.60mm) | 0.142" (3.60mm) |
