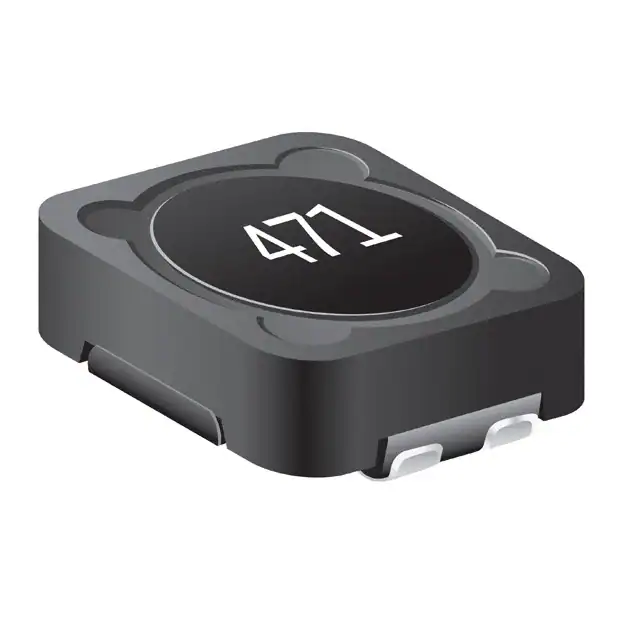

| Part Number | SRF0703-1R0M | SRF0703-1R5M | SRF0703-100M | SRF0703-150M |
|---|---|---|---|---|
| Manufacturer | Bourns Inc. | Bourns Inc. | Bourns Inc. | Bourns Inc. |
| Product Status | Active | Active | Active | Active |
| Number of Coils | 2 | 2 | 2 | 2 |
| Inductance - Connected In Parallel | 1 µH | 1.5 µH | 10 µH | 15 µH |
| Inductance - Connected In Series | 4 µH | 6 µH | 40 µH | 60 µH |
| Tolerance | ±20% | ±20% | ±20% | ±20% |
| Current Rating - Parallel | 5.25 A | 4.64 A | 2.08 A | 1.83 A |
| Current Rating - Series | 2.63 A | 2.32 A | 1.04 A | 916 mA |
| Current Saturation - Parallel | 7.97 A | 6.52 A | 2.47 A | 2.05 A |
| Current Saturation - Series | 3.99 A | 3.26 A | 1.24 A | 1.03 A |
| DC Resistance (DCR) - Parallel | 13.5mOhm Max | 19.1mOhm Max | 82.6mOhm Max | 119mOhm Max |
| DC Resistance (DCR) - Series | 72mOhm Max | 110mOhm Max | 342mOhm Max | 470mOhm Max |
| Shielding | Shielded | Shielded | Shielded | Shielded |
| Ratings | - | - | - | - |
| Operating Temperature | -40°C ~ 125°C | -40°C ~ 125°C | -40°C ~ 125°C | -40°C ~ 125°C |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | Nonstandard | Nonstandard | Nonstandard | Nonstandard |
| Size / Dimension | 0.299" L x 0.299" W (7.60mm x 7.60mm) | 0.299" L x 0.299" W (7.60mm x 7.60mm) | 0.299" L x 0.299" W (7.60mm x 7.60mm) | 0.299" L x 0.299" W (7.60mm x 7.60mm) |
| Height | 0.142" (3.60mm) | 0.142" (3.60mm) | 0.142" (3.60mm) | 0.142" (3.60mm) |
