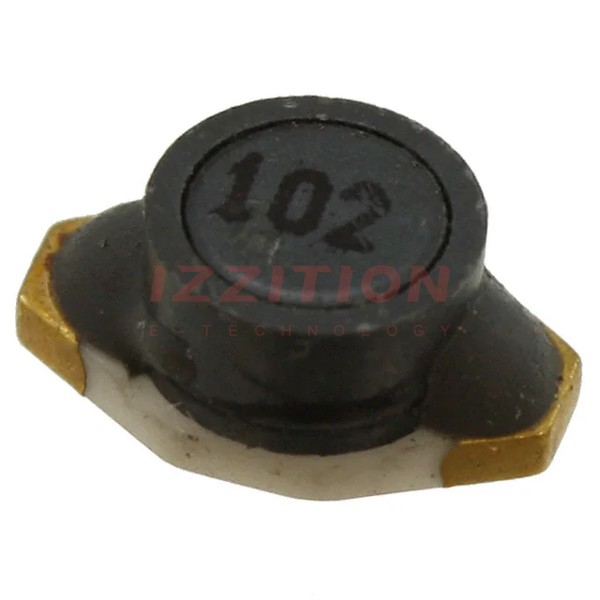

| Part Number | SRE6603-100M | SRE6603-103M | SRE6603-102M | SRE6603-101M | SRE6603-150M | SRE6603-1R0M |
|---|---|---|---|---|---|---|
| Manufacturer | Bourns Inc. | Bourns Inc. | Bourns Inc. | Bourns Inc. | Bourns Inc. | Bourns Inc. |
| Product Status | Obsolete | Active | Obsolete | Obsolete | Obsolete | Obsolete |
| Type | Drum Core, Wirewound | Drum Core, Wirewound | Drum Core, Wirewound | Drum Core, Wirewound | Drum Core, Wirewound | Drum Core, Wirewound |
| Material - Core | Ferrite | Ferrite | Ferrite | Ferrite | Ferrite | Ferrite |
| Inductance | 10 µH | 10 mH | 1 mH | 100 µH | 15 µH | 1 µH |
| Tolerance | ±20% | ±20% | ±20% | ±20% | ±20% | ±20% |
| Current Rating (Amps) | 1 A | 20 mA | 150 mA | 300 mA | 800 mA | 3 A |
| Current - Saturation (Isat) | 370mA | 17mA | 45mA | 130mA | 310mA | 1.4A |
| Shielding | Shielded | Shielded | Shielded | Shielded | Shielded | Shielded |
| DC Resistance (DCR) | 75mOhm Max | 32.8Ohm Max | 3.4Ohm Max | 480mOhm Max | 90mOhm Max | 40mOhm Max |
| Q @ Freq | 40 @ 200kHz | 50 @ 100kHz | 40 @ 100kHz | 40 @ 100kHz | 40 @ 100kHz | 30 @ 200kHz |
| Frequency - Self Resonant | 38MHz | 800kHz | 2MHz | 10MHz | 33MHz | 250MHz |
| Ratings | - | - | - | - | - | - |
| Operating Temperature | -25°C ~ 105°C | -25°C ~ 105°C | -25°C ~ 105°C | -25°C ~ 105°C | -25°C ~ 105°C | -25°C ~ 105°C |
| Inductance Frequency - Test | 100 kHz | 100 kHz | 100 kHz | 100 kHz | 100 kHz | 100 kHz |
| Features | - | - | - | - | - | - |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | Nonstandard | Nonstandard | Nonstandard | Nonstandard | Nonstandard | Nonstandard |
| Supplier Device Package | - | - | - | - | - | - |
| Size / Dimension | 0.260" L x 0.175" W (6.60mm x 4.45mm) | 0.260" L x 0.175" W (6.60mm x 4.45mm) | 0.260" L x 0.175" W (6.60mm x 4.45mm) | 0.260" L x 0.175" W (6.60mm x 4.45mm) | 0.260" L x 0.175" W (6.60mm x 4.45mm) | 0.260" L x 0.175" W (6.60mm x 4.45mm) |
| Height - Seated (Max) | 0.115" (2.92mm) | 0.115" (2.92mm) | 0.115" (2.92mm) | 0.115" (2.92mm) | 0.115" (2.92mm) | 0.115" (2.92mm) |
