| Part Number | SMBJ70CA-Q | SMBJ75CA-Q | SMBJ70CA-QH | SMBJ70A-Q |
|---|---|---|---|---|
| Manufacturer | Bourns Inc. | Bourns Inc. | Bourns Inc. | Bourns Inc. |
| Product Status | Active | Active | Active | Active |
| Type | Zener | Zener | Zener | Zener |
| Unidirectional Channels | - | - | - | 1 |
| Bidirectional Channels | 1 | 1 | 1 | - |
| Voltage - Reverse Standoff (Typ) | 70V | 75V | 70V | 70V |
| Voltage - Breakdown (Min) | 77.8V | 83.3V | 77.8V | 77.8V |
| Voltage - Clamping (Max) @ Ipp | 113V | 121V | 113V | 113V |
| Current - Peak Pulse (10/1000µs) | 5.3A | 5A | 5.3A | 5.3A |
| Power - Peak Pulse | 600W | 600W | 600W | 600W |
| Power Line Protection | No | No | No | No |
| Applications | Automotive, Telecom | Automotive, Telecom | Automotive, Telecom | Automotive, Telecom |
| Capacitance @ Frequency | - | - | - | - |
| Operating Temperature | -55°C ~ 150°C (TJ) | -55°C ~ 150°C (TJ) | -55°C ~ 150°C (TJ) | -55°C ~ 150°C (TJ) |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount |

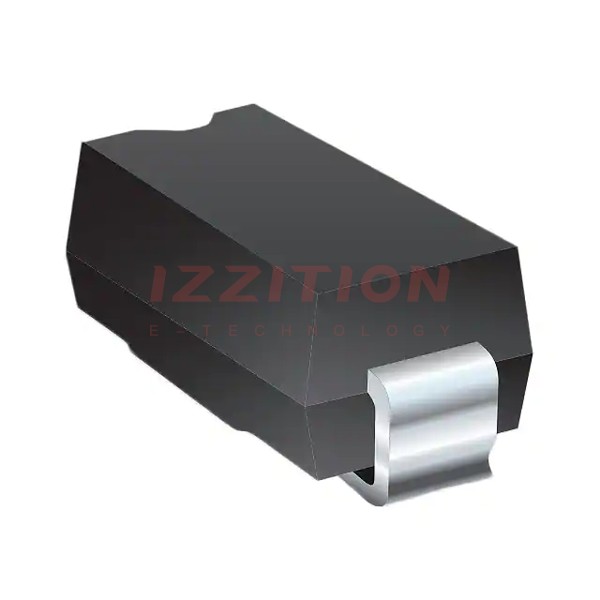

| Package / Case | DO-214AA, SMB | DO-214AA, SMB | DO-214AA, SMB | DO-214AA, SMB |
| Supplier Device Package | SMB (DO-214AA) | SMB (DO-214AA) | SMB (DO-214AA) | SMB (DO-214AA) |
