Please send RFQ , we will respond immediately.
| Part Number | SMBJ220CA-Q | SMBJ22CA-Q | SMBJ220CA-QH | SMBJ20CA-Q | SMBJ220A-Q | SMBJ220CA-H |
|---|---|---|---|---|---|---|
| Manufacturer | Bourns Inc. | Bourns Inc. | Bourns Inc. | Bourns Inc. | Bourns Inc. | Bourns Inc. |
| Product Status | Active | Active | Active | Active | Active | Active |
| Type | Zener | Zener | Zener | Zener | Zener | Zener |
| Unidirectional Channels | - | - | - | - | 1 | - |
| Bidirectional Channels | 1 | 1 | 1 | 1 | - | 1 |
| Voltage - Reverse Standoff (Typ) | 220V | 22V | 220V | 20V | 220V | 220V |
| Voltage - Breakdown (Min) | 246V | 24.4V | 246V | 22.2V | 246V | 246V |
| Voltage - Clamping (Max) @ Ipp | 356V | 35.5V | 356V | 32.4V | 356V | 356V |
| Current - Peak Pulse (10/1000µs) | 1.7A | 16.9A | 1.7A | 18.6A | 1.7A | 1.7A |
| Power - Peak Pulse | 600W | 600W | 600W | 600W | 600W | 600W |
| Power Line Protection | No | No | No | No | No | No |
| Applications | Automotive, Telecom | Automotive, Telecom | Automotive, Telecom | Automotive, Telecom | Automotive, Telecom | General Purpose |
| Capacitance @ Frequency | - | - | - | - | - | - |
| Operating Temperature | -55°C ~ 150°C (TJ) | -55°C ~ 150°C (TJ) | -55°C ~ 150°C (TJ) | -55°C ~ 150°C (TJ) | -55°C ~ 150°C (TJ) | -55°C ~ 150°C (TJ) |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount |

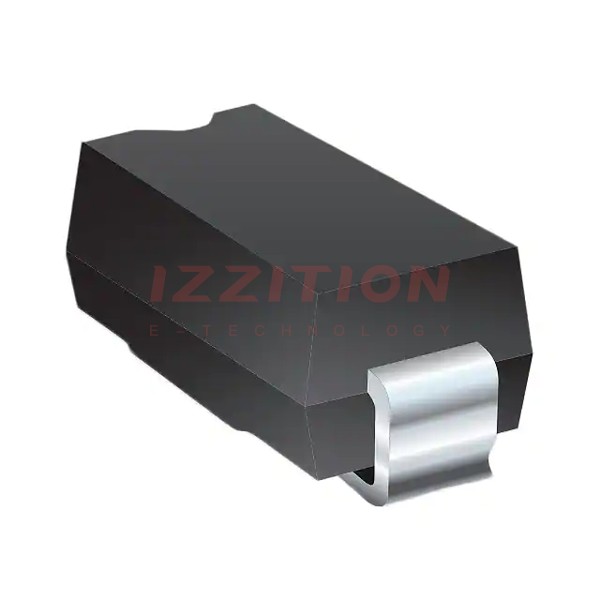

| Package / Case | DO-214AA, SMB | DO-214AA, SMB | DO-214AA, SMB | DO-214AA, SMB | DO-214AA, SMB | DO-214AA, SMB |
| Supplier Device Package | SMB (DO-214AA) | SMB (DO-214AA) | SMB (DO-214AA) | SMB (DO-214AA) | SMB (DO-214AA) | SMB (DO-214AA) |
