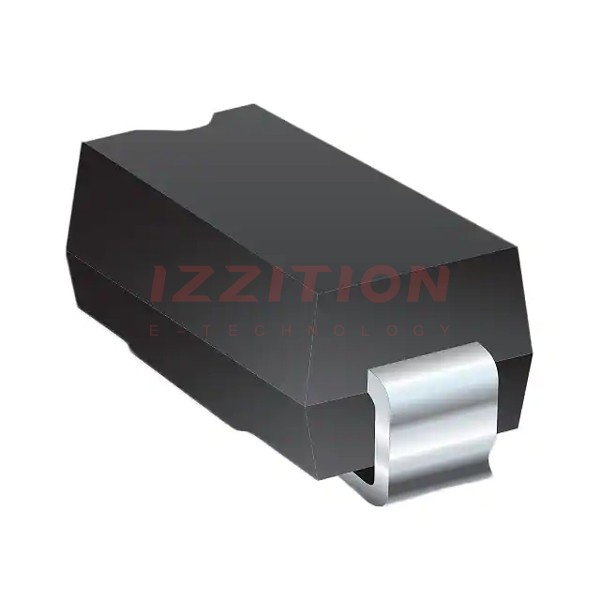

| Part Number | SMBJ10CA-Q | SMBJ10CA-QH | SMBJ110CA-Q | SMBJ100CA-Q | SMBJ10A-Q |
|---|---|---|---|---|---|
| Manufacturer | Bourns Inc. | Bourns Inc. | Bourns Inc. | Bourns Inc. | Bourns Inc. |
| Product Status | Active | Active | Active | Active | Active |
| Type | Zener | Zener | Zener | Zener | Zener |
| Unidirectional Channels | - | - | - | - | 1 |
| Bidirectional Channels | 1 | 1 | 1 | 1 | - |
| Voltage - Reverse Standoff (Typ) | 10V | 10V | 110V | 100V | 10V |
| Voltage - Breakdown (Min) | 11.1V | 11.1V | 122V | 111V | 11.1V |
| Voltage - Clamping (Max) @ Ipp | 17V | 17V | 177V | 162V | 17V |
| Current - Peak Pulse (10/1000µs) | 35.3A | 35.3A | 3.4A | 3.7A | 35.3A |
| Power - Peak Pulse | 600W | 600W | 600W | 600W | 600W |
| Power Line Protection | No | No | No | No | No |
| Applications | Automotive, Telecom | Automotive, Telecom | Automotive, Telecom | Automotive, Telecom | Automotive, Telecom |
| Capacitance @ Frequency | - | - | - | - | - |
| Operating Temperature | -55°C ~ 150°C (TJ) | -55°C ~ 150°C (TJ) | -55°C ~ 150°C (TJ) | -55°C ~ 150°C (TJ) | -55°C ~ 150°C (TJ) |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | DO-214AA, SMB | DO-214AA, SMB | DO-214AA, SMB | DO-214AA, SMB | DO-214AA, SMB |
| Supplier Device Package | SMB (DO-214AA) | SMB (DO-214AA) | SMB (DO-214AA) | SMB (DO-214AA) | SMB (DO-214AA) |
