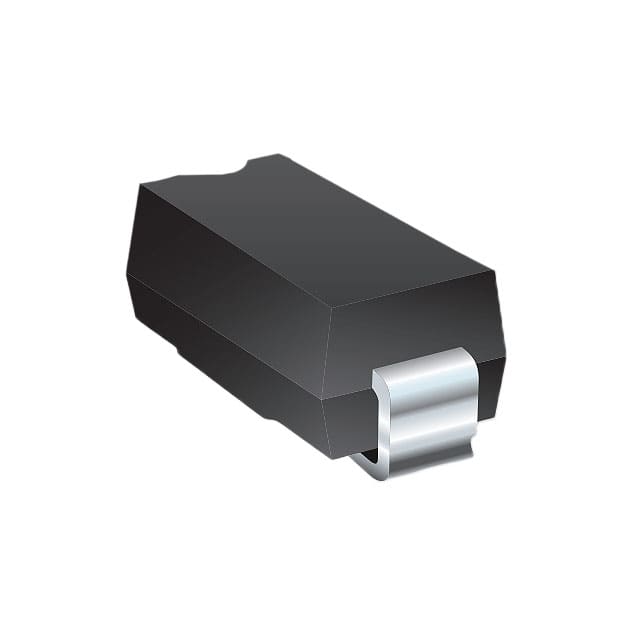

| Part Number | SMA6J70CA-Q | SMA6J90CA-Q | SMA6J78CA-Q | SMA6J75CA-Q | SMA6J60CA-Q | SMA6J70A-Q |
|---|---|---|---|---|---|---|
| Manufacturer | Bourns Inc. | Bourns Inc. | Bourns Inc. | Bourns Inc. | Bourns Inc. | Bourns Inc. |
| Product Status | Active | Active | Active | Active | Active | Active |
| Type | Zener | Zener | Zener | Zener | Zener | Zener |
| Unidirectional Channels | - | - | - | - | - | 1 |
| Bidirectional Channels | 1 | 1 | 1 | 1 | 1 | - |
| Voltage - Reverse Standoff (Typ) | 70V | 90V | 78V | 75V | 60V | 70V |
| Voltage - Breakdown (Min) | 77.8V | 100V | 86.7V | 83.3V | 66.7V | 77.8V |
| Voltage - Clamping (Max) @ Ipp | 113V | 146V | 126V | 121V | 96.8V | 113V |
| Current - Peak Pulse (10/1000µs) | 5.3A | 4.1A | 4.8A | 5A | 6.2A | 5.3A |
| Power - Peak Pulse | 600W | 600W | 600W | 600W | 600W | 600W |
| Power Line Protection | No | No | No | No | No | No |
| Applications | Automotive, Telecom | Automotive, Telecom | Automotive, Telecom | Automotive, Telecom | Automotive, Telecom | Automotive, Telecom |
| Capacitance @ Frequency | - | - | - | - | - | - |
| Operating Temperature | -55°C ~ 150°C (TJ) | -55°C ~ 150°C (TJ) | -55°C ~ 150°C (TJ) | -55°C ~ 150°C (TJ) | -55°C ~ 150°C (TJ) | -55°C ~ 150°C (TJ) |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | DO-214AC, SMA | DO-214AC, SMA | DO-214AC, SMA | DO-214AC, SMA | DO-214AC, SMA | DO-214AC, SMA |
| Supplier Device Package | DO-214AC (SMA) | DO-214AC (SMA) | DO-214AC (SMA) | DO-214AC (SMA) | DO-214AC (SMA) | DO-214AC (SMA) |
