SMA6J48CA-Q
  • Share:

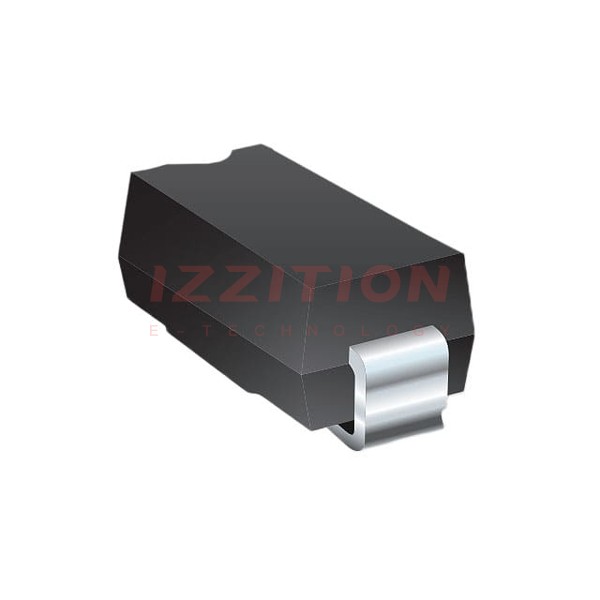

Bourns Inc. SMA6J48CA-Q

Manufacturer No:
SMA6J48CA-Q
Manufacturer:
Bourns Inc.
Package:
Tape & Reel (TR)
Datasheet:
SMA6J48CA-Q Datasheet
ECAD Model:
-
Description:
TVS DIODE 48VWM 77.4VC SMA
Delivery:
Payment:
iso14001
iso45001
iso9001
iso13485

Product Attributes

Type:Zener
Unidirectional Channels:-
Bidirectional Channels:1
Voltage - Reverse Standoff (Typ):48V
Voltage - Breakdown (Min):53.3V
Voltage - Clamping (Max) @ Ipp:77.4V
Current - Peak Pulse (10/1000µs):7.8A
Power - Peak Pulse:600W
Power Line Protection:No
Applications:Automotive, Telecom
Capacitance @ Frequency:-
Operating Temperature:-55°C ~ 150°C (TJ)
Mounting Type:Surface Mount
Package / Case:DO-214AC, SMA
Supplier Device Package:DO-214AC (SMA)
0 Remaining View Similar

In Stock

$0.68
1,073

Please send RFQ , we will respond immediately.

Similar Products

Part Number SMA6J48CA-Q SMA6J58CA-Q   SMA6J78CA-Q   SMA6J45CA-Q   SMA6J48A-Q
Manufacturer Bourns Inc. Bourns Inc. Bourns Inc. Bourns Inc. Bourns Inc.
Product Status Active Active Active Active Active
Type Zener Zener Zener Zener Zener
Unidirectional Channels - - - - 1
Bidirectional Channels 1 1 1 1 -
Voltage - Reverse Standoff (Typ) 48V 58V 78V 45V 48V
Voltage - Breakdown (Min) 53.3V 64.4V 86.7V 50V 53.3V
Voltage - Clamping (Max) @ Ipp 77.4V 93.6V 126V 72.7V 77.4V
Current - Peak Pulse (10/1000µs) 7.8A 6.5A 4.8A 8.3A 7.8A
Power - Peak Pulse 600W 600W 600W 600W 600W
Power Line Protection No No No No No
Applications Automotive, Telecom Automotive, Telecom Automotive, Telecom Automotive, Telecom Automotive, Telecom
Capacitance @ Frequency - - - - -
Operating Temperature -55°C ~ 150°C (TJ) -55°C ~ 150°C (TJ) -55°C ~ 150°C (TJ) -55°C ~ 150°C (TJ) -55°C ~ 150°C (TJ)
Mounting Type Surface Mount Surface Mount Surface Mount Surface Mount Surface Mount
Package / Case DO-214AC, SMA DO-214AC, SMA DO-214AC, SMA DO-214AC, SMA DO-214AC, SMA
Supplier Device Package DO-214AC (SMA) DO-214AC (SMA) DO-214AC (SMA) DO-214AC (SMA) DO-214AC (SMA)
