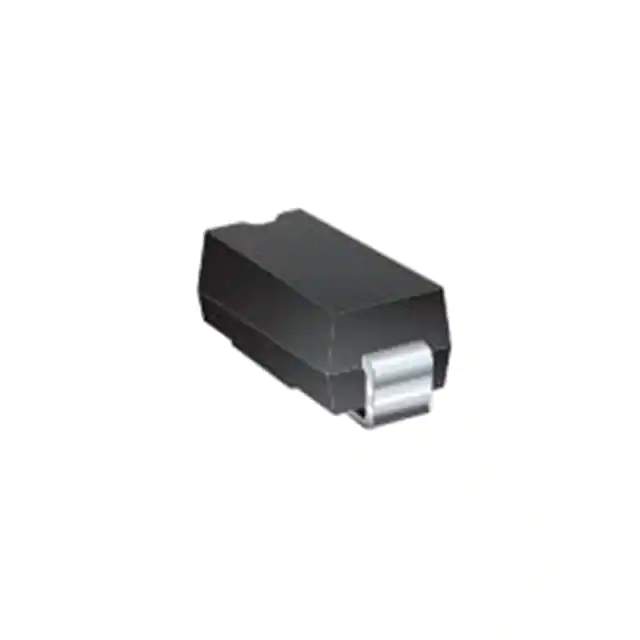

| Part Number | SMA6J24A | SMA6J24CA | SMA6J26A | SMA6J24AH | SMA6J20A | SMA6J22A |
|---|---|---|---|---|---|---|
| Manufacturer | Bourns Inc. | Littelfuse Inc. | Littelfuse Inc. | Taiwan Semiconductor Corporation | Littelfuse Inc. | Littelfuse Inc. |
| Product Status | Active | Active | Active | Active | Active | Active |
| Type | Zener | Zener | Zener | Zener | Zener | Zener |
| Unidirectional Channels | 1 | - | 1 | 1 | 1 | 1 |
| Bidirectional Channels | - | 1 | - | - | - | - |
| Voltage - Reverse Standoff (Typ) | 24V | 24V | 26V | 24V | 20V | 22V |
| Voltage - Breakdown (Min) | 26.7V | 26.7V | 28.9V | 26.7V | 22.2V | 24.4V |
| Voltage - Clamping (Max) @ Ipp | 38.9V | 38.9V | 42.1V | 37.8V | 32.4V | 35.5V |
| Current - Peak Pulse (10/1000µs) | 15.5A | 16A | 14.9A | 15.9A | 19.4A | 17A |
| Power - Peak Pulse | 600W | 600W | 600W | 600W | 600W | 600W |
| Power Line Protection | No | No | No | No | No | No |
| Applications | Telecom | General Purpose | General Purpose | Automotive | General Purpose | General Purpose |
| Capacitance @ Frequency | - | - | - | - | - | - |
| Operating Temperature | -55°C ~ 150°C (TJ) | -65°C ~ 150°C (TJ) | -65°C ~ 150°C (TJ) | -55°C ~ 175°C (TJ) | -65°C ~ 150°C (TJ) | -65°C ~ 150°C (TJ) |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | DO-214AC, SMA | DO-214AC, SMA | DO-214AC, SMA | DO-214AC, SMA | DO-214AC, SMA | DO-214AC, SMA |
| Supplier Device Package | DO-214AC (SMA) | DO-214AC (SMA) | DO-214AC (SMA) | DO-214AC (SMA) | DO-214AC (SMA) | DO-214AC (SMA) |
