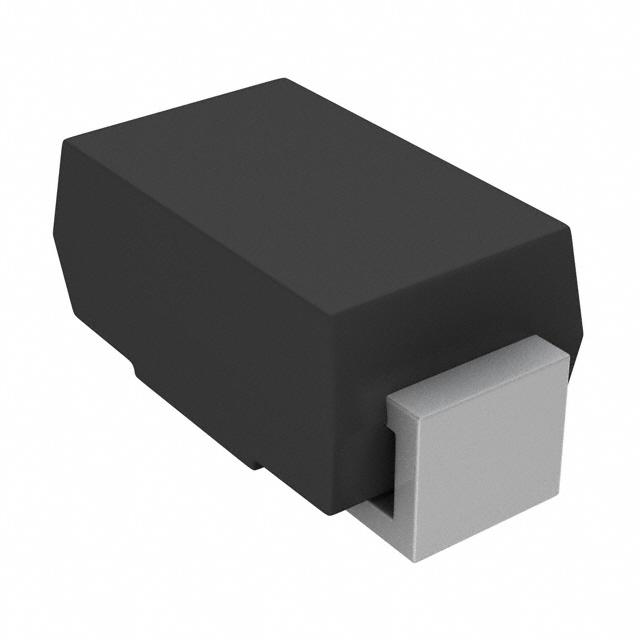

| Part Number | SMA6J18A | SMA6J18CA | SMA6J18AH | SMA6J12A | SMA6J13A | SMA6J14A | SMA6J15A | SMA6J16A | SMA6J17A | SMA6J180A |
|---|---|---|---|---|---|---|---|---|---|---|
| Manufacturer | Bourns Inc. | Littelfuse Inc. | Taiwan Semiconductor Corporation | Littelfuse Inc. | Littelfuse Inc. | Littelfuse Inc. | Littelfuse Inc. | Littelfuse Inc. | Littelfuse Inc. | Rectron USA |
| Product Status | Active | Active | Active | Active | Active | Active | Active | Active | Active | Active |
| Type | Zener | Zener | Zener | Zener | Zener | Zener | Zener | Zener | Zener | Zener |
| Unidirectional Channels | 1 | - | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 |
| Bidirectional Channels | - | 1 | - | - | - | - | - | - | - | - |
| Voltage - Reverse Standoff (Typ) | 18V | 18V | 18V | 12V | 13V | 14V | 15V | 16V | 17V | 180V |
| Voltage - Breakdown (Min) | 20V | 20V | 20V | 13.3V | - | 15.6V | 16.7V | 17.8V | 18.9V | - |
| Voltage - Clamping (Max) @ Ipp | 29.2V | 29.2V | 28.3V | 19.9V | - | 23.2V | 24.4V | 26V | 27.6V | 292V |
| Current - Peak Pulse (10/1000µs) | 20.6A | 21.5A | 21.2A | 30.2A | - | 25.8A | 25.1A | 23.1A | 22.6A | - |
| Power - Peak Pulse | 600W | 600W | 600W | 600W | 600W | 600W | 600W | 600W | 600W | 600W |
| Power Line Protection | No | No | No | No | No | No | No | No | No | - |
| Applications | Telecom | General Purpose | Automotive | General Purpose | General Purpose | General Purpose | General Purpose | General Purpose | General Purpose | General Purpose |
| Capacitance @ Frequency | - | - | - | - | - | - | - | - | - | - |
| Operating Temperature | -55°C ~ 150°C (TJ) | -65°C ~ 150°C (TJ) | -55°C ~ 175°C (TJ) | -65°C ~ 150°C (TJ) | -65°C ~ 150°C (TJ) | -65°C ~ 150°C (TJ) | -65°C ~ 150°C (TJ) | -65°C ~ 150°C (TJ) | -65°C ~ 150°C (TJ) | -55°C ~ 150°C (TJ) |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | DO-214AC, SMA | DO-214AC, SMA | DO-214AC, SMA | DO-214AC, SMA | DO-214AC, SMA | DO-214AC, SMA | DO-214AC, SMA | DO-214AC, SMA | DO-214AC, SMA | DO-214AC, SMA |
| Supplier Device Package | DO-214AC (SMA) | DO-214AC (SMA) | DO-214AC (SMA) | DO-214AC (SMA) | DO-214AC (SMA) | DO-214AC (SMA) | DO-214AC (SMA) | DO-214AC (SMA) | DO-214AC (SMA) | DO-214AC (SMA) |
