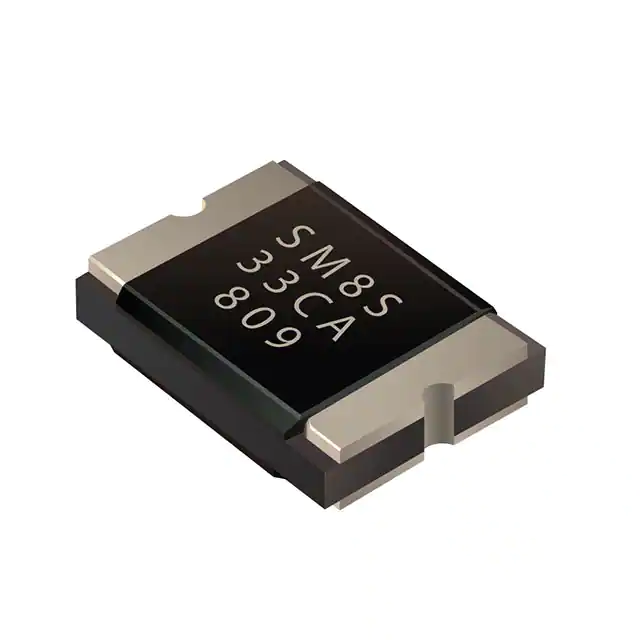

| Part Number | SM8SF33A-Q | SM8SF33CA-Q | SM8SF36A-Q | SM8S33A-Q | SM8SF30A-Q |
|---|---|---|---|---|---|
| Manufacturer | Bourns Inc. | Bourns Inc. | Bourns Inc. | Bourns Inc. | Bourns Inc. |
| Product Status | Active | Active | Active | Active | Active |
| Type | Zener | Zener | Zener | Zener | Zener |
| Unidirectional Channels | 1 | - | 1 | 1 | 1 |
| Bidirectional Channels | - | 1 | - | - | - |
| Voltage - Reverse Standoff (Typ) | 33V | 33V | 36V | 33V | 30V |
| Voltage - Breakdown (Min) | 36.7V | 36.7V | 40V | 36.7V | 33.3V |
| Voltage - Clamping (Max) @ Ipp | 53.3V | 53.3V | 58.1V | 53.3V | 48.4V |
| Current - Peak Pulse (10/1000µs) | 131A | 131A | 120A | 124A | 145A |
| Power - Peak Pulse | 7000W (7kW) | 7000W (7kW) | 7000W (7kW) | 6600W (6.6kW) | 7000W (7kW) |
| Power Line Protection | No | No | No | No | No |
| Applications | Automotive | Automotive | Automotive | Automotive | Automotive |
| Capacitance @ Frequency | - | - | - | - | - |
| Operating Temperature | -55°C ~ 175°C (TJ) | -55°C ~ 175°C (TJ) | -55°C ~ 175°C (TJ) | -55°C ~ 175°C (TJ) | -55°C ~ 175°C (TJ) |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | 2-LDFN | 2-LDFN | 2-LDFN | DO-218AB | 2-LDFN |
| Supplier Device Package | 2-DFN (8.1x10.5) | 2-DFN (8.1x10.5) | 2-DFN (8.1x10.5) | DO-218 | 2-DFN (8.1x10.5) |
