Bourns Inc.-SF-1206HIA600M-2 - Fuses Product Specifications and Latest Quotes

Mounting Type:	Surface Mount
Fuse Type:	Board Mount (Cartridge Style Excluded)
Current Rating (Amps):	6 A
Voltage Rating - AC:	-
Voltage Rating - DC:	24 V
Response Time:	Fast Blow
Package / Case:	1206 (3216 Metric)
Breaking Capacity @ Rated Voltage:	80A
Melting I²t:	12.8
Approval Agency:	cUL, UL
Operating Temperature:	-55°C ~ 150°C
Color:	-
Size / Dimension:	0.126" L x 0.063" W x 0.038" H (3.20mm x 1.60mm x 0.97mm)

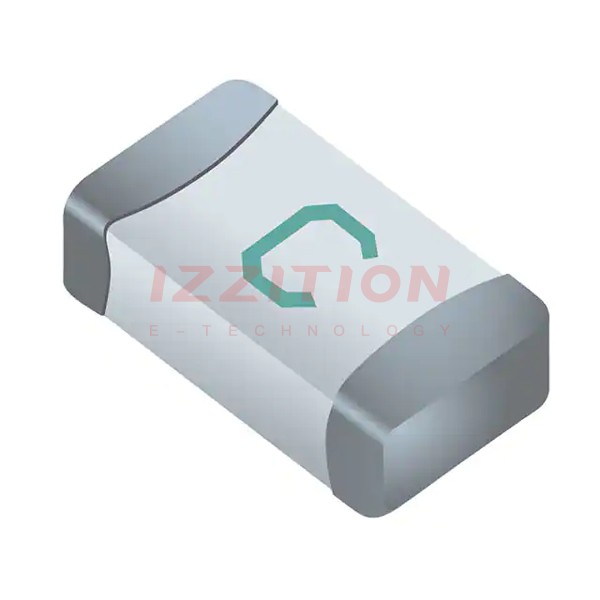

Bourns Inc. SF-1206HIA600M-2
