Bourns Inc.-SF-0603S040-2 - Fuses Product Specifications and Latest Quotes

Mounting Type:	Surface Mount
Fuse Type:	Board Mount (Cartridge Style Excluded)
Current Rating (Amps):	400 mA
Voltage Rating - AC:	35 V
Voltage Rating - DC:	50 V
Response Time:	Slow Blow
Package / Case:	0603 (1608 Metric)
Breaking Capacity @ Rated Voltage:	50A
Melting I²t:	0.004
Approval Agency:	UL
Operating Temperature:	-20°C ~ 105°C
Color:	-
Size / Dimension:	0.063" L x 0.031" W x 0.018" H (1.60mm x 0.80mm x 0.45mm)

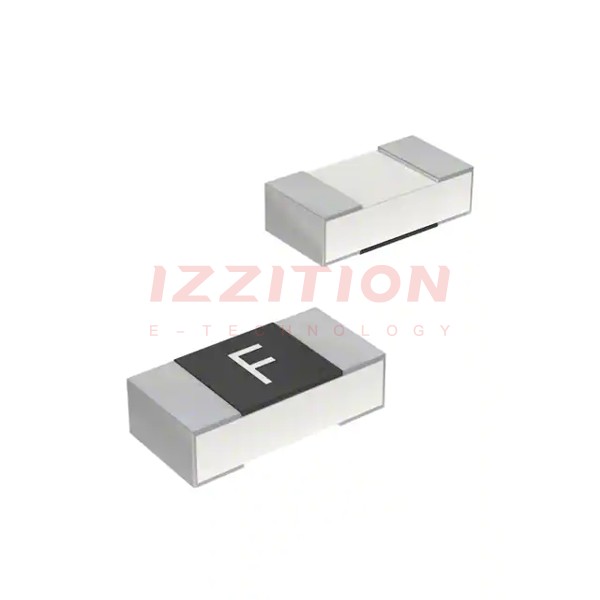

Bourns Inc. SF-0603S040-2
