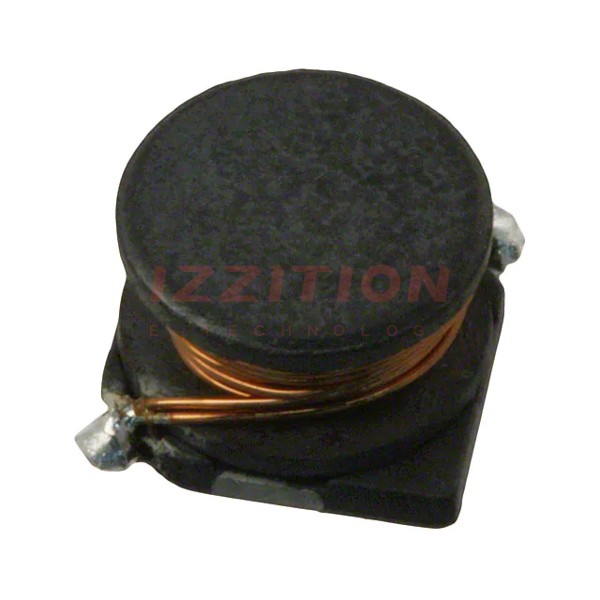

| Part Number | SDR7045-101K | SDR7045-151K | SDR7045-102K |
|---|---|---|---|
| Manufacturer | Bourns Inc. | Bourns Inc. | Bourns Inc. |
| Product Status | Active | Active | Active |
| Type | Drum Core, Wirewound | Drum Core, Wirewound | Drum Core, Wirewound |
| Material - Core | Ferrite | Ferrite | Ferrite |
| Inductance | 100 µH | 150 µH | 1 mH |
| Tolerance | ±10% | ±10% | ±10% |
| Current Rating (Amps) | 750 mA | 620 mA | 220 mA |
| Current - Saturation (Isat) | 720mA | 580mA | 200mA |
| Shielding | Unshielded | Unshielded | Unshielded |
| DC Resistance (DCR) | 430mOhm Max | 580mOhm Max | 4Ohm Max |
| Q @ Freq | 17 @ 796kHz | 17 @ 796kHz | 48 @ 252kHz |
| Frequency - Self Resonant | 10MHz | 8MHz | 3MHz |
| Ratings | - | - | - |
| Operating Temperature | -40°C ~ 125°C | -40°C ~ 125°C | -40°C ~ 125°C |
| Inductance Frequency - Test | 100 kHz | 100 kHz | 100 kHz |
| Features | - | - | - |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | Nonstandard | Nonstandard | Nonstandard |
| Supplier Device Package | - | - | - |
| Size / Dimension | 0.276" L x 0.276" W (7.00mm x 7.00mm) | 0.276" L x 0.276" W (7.00mm x 7.00mm) | 0.276" L x 0.276" W (7.00mm x 7.00mm) |
| Height - Seated (Max) | 0.189" (4.80mm) | 0.189" (4.80mm) | 0.189" (4.80mm) |
