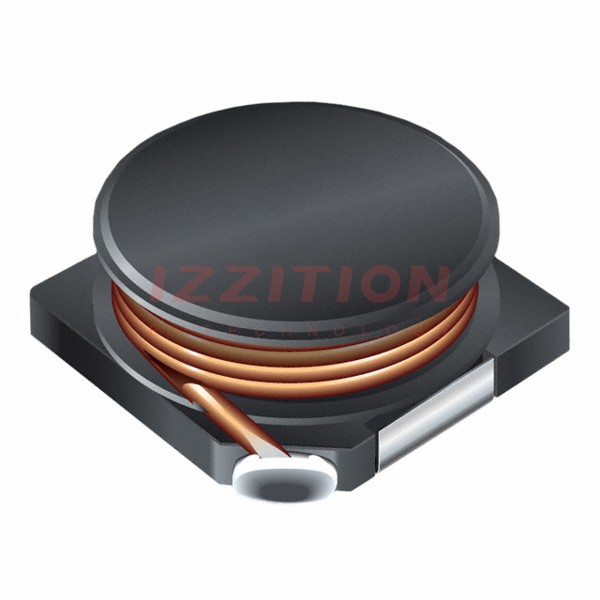

| Part Number | SDR7030-471K | SDR7030-470K |
|---|---|---|
| Manufacturer | Bourns Inc. | Bourns Inc. |
| Product Status | Active | Active |
| Type | Drum Core, Wirewound | Drum Core, Wirewound |
| Material - Core | Ferrite | Ferrite |
| Inductance | 470 µH | 47 µH |
| Tolerance | ±10% | ±10% |
| Current Rating (Amps) | 220 mA | 700 mA |
| Current - Saturation (Isat) | 230mA | 780mA |
| Shielding | Unshielded | Unshielded |
| DC Resistance (DCR) | 2.8Ohm Max | 340mOhm Max |
| Q @ Freq | 30 @ 796kHz | 12 @ 2.52MHz |
| Frequency - Self Resonant | 6MHz | 18MHz |
| Ratings | - | - |
| Operating Temperature | -40°C ~ 125°C | -40°C ~ 125°C |
| Inductance Frequency - Test | 100 kHz | 100 kHz |
| Features | - | - |
| Mounting Type | Surface Mount | Surface Mount |
| Package / Case | Nonstandard | Nonstandard |
| Supplier Device Package | - | - |
| Size / Dimension | 0.276" L x 0.276" W (7.00mm x 7.00mm) | 0.276" L x 0.276" W (7.00mm x 7.00mm) |
| Height - Seated (Max) | 0.130" (3.30mm) | 0.130" (3.30mm) |
