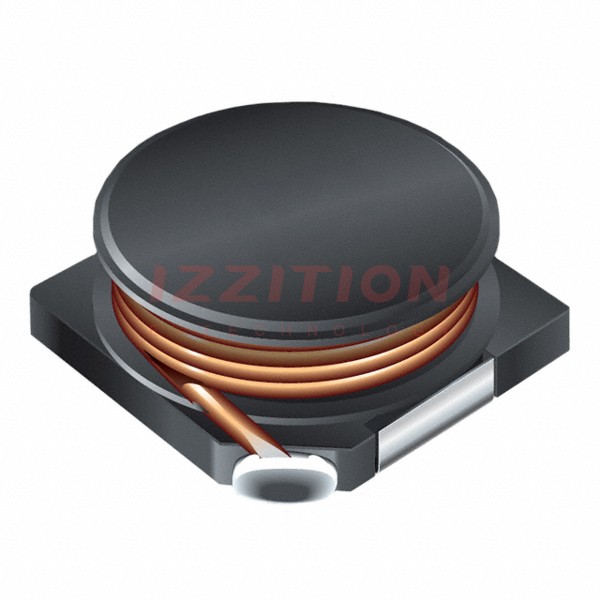

| Part Number | SDR7030-1R5M | SDR7030-3R5M | SDR7030-1R0M |
|---|---|---|---|
| Manufacturer | Bourns Inc. | Bourns Inc. | Bourns Inc. |
| Product Status | Active | Active | Active |
| Type | Drum Core, Wirewound | Drum Core, Wirewound | Drum Core, Wirewound |
| Material - Core | Ferrite | Ferrite | Ferrite |
| Inductance | 1.5 µH | 3.5 µH | 1 µH |
| Tolerance | ±20% | ±20% | ±20% |
| Current Rating (Amps) | 2.75 A | 2.2 A | 3 A |
| Current - Saturation (Isat) | 3.6A | 2.6A | 4.3A |
| Shielding | Unshielded | Unshielded | Unshielded |
| DC Resistance (DCR) | 27mOhm Max | 38mOhm Max | 22mOhm Max |
| Q @ Freq | 17 @ 7.96MHz | 17 @ 7.96MHz | 18 @ 7.96MHz |
| Frequency - Self Resonant | 100MHz | 59MHz | 113MHz |
| Ratings | - | - | - |
| Operating Temperature | -40°C ~ 125°C | -40°C ~ 125°C | -40°C ~ 125°C |
| Inductance Frequency - Test | 100 kHz | 100 kHz | 100 kHz |
| Features | - | - | - |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | Nonstandard | Nonstandard | Nonstandard |
| Supplier Device Package | - | - | - |
| Size / Dimension | 0.276" L x 0.276" W (7.00mm x 7.00mm) | 0.276" L x 0.276" W (7.00mm x 7.00mm) | 0.276" L x 0.276" W (7.00mm x 7.00mm) |
| Height - Seated (Max) | 0.130" (3.30mm) | 0.130" (3.30mm) | 0.130" (3.30mm) |
