Please send RFQ , we will respond immediately.

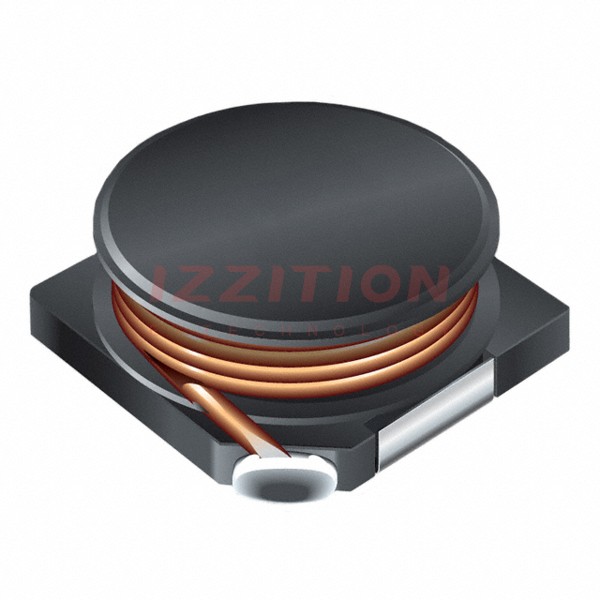

| Part Number | SDR7030-150M | SDR7030-1R0M | SDR7030-100M |
|---|---|---|---|
| Manufacturer | Bourns Inc. | Bourns Inc. | Bourns Inc. |
| Product Status | Active | Active | Active |
| Type | Drum Core, Wirewound | Drum Core, Wirewound | Drum Core, Wirewound |
| Material - Core | Ferrite | Ferrite | Ferrite |
| Inductance | 15 µH | 1 µH | 10 µH |
| Tolerance | ±20% | ±20% | ±20% |
| Current Rating (Amps) | 1.2 A | 3 A | 1.5 A |
| Current - Saturation (Isat) | 1.3A | 4.3A | 1.6A |
| Shielding | Unshielded | Unshielded | Unshielded |
| DC Resistance (DCR) | 115mOhm Max | 22mOhm Max | 75mOhm Max |
| Q @ Freq | 14 @ 2.52MHz | 18 @ 7.96MHz | 16 @ 2.52MHz |
| Frequency - Self Resonant | 33MHz | 113MHz | 35MHz |
| Ratings | - | - | - |
| Operating Temperature | -40°C ~ 125°C | -40°C ~ 125°C | -40°C ~ 125°C |
| Inductance Frequency - Test | 100 kHz | 100 kHz | 100 kHz |
| Features | - | - | - |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | Nonstandard | Nonstandard | Nonstandard |
| Supplier Device Package | - | - | - |
| Size / Dimension | 0.276" L x 0.276" W (7.00mm x 7.00mm) | 0.276" L x 0.276" W (7.00mm x 7.00mm) | 0.276" L x 0.276" W (7.00mm x 7.00mm) |
| Height - Seated (Max) | 0.130" (3.30mm) | 0.130" (3.30mm) | 0.130" (3.30mm) |
