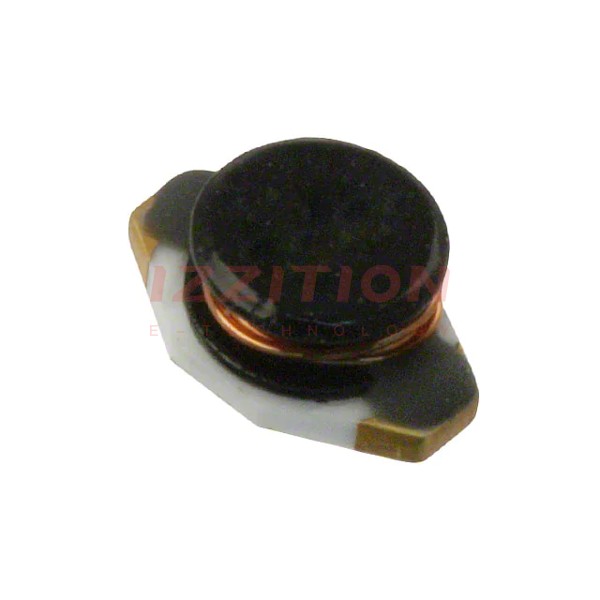

| Part Number | SDR6603-681M | SDR6603-680M |
|---|---|---|
| Manufacturer | Bourns Inc. | Bourns Inc. |
| Product Status | Active | Active |
| Type | Drum Core, Wirewound | Drum Core, Wirewound |
| Material - Core | Ferrite | Ferrite |
| Inductance | 680 µH | 68 µH |
| Tolerance | ±20% | ±20% |
| Current Rating (Amps) | 120 mA | 400 mA |
| Current - Saturation (Isat) | 140mA | 400mA |
| Shielding | Unshielded | Unshielded |
| DC Resistance (DCR) | 9.2Ohm Max | 860mOhm Max |
| Q @ Freq | 58 @ 796kHz | 18 @ 2.52MHz |
| Frequency - Self Resonant | 3MHz | 11MHz |
| Ratings | - | - |
| Operating Temperature | -40°C ~ 125°C | -40°C ~ 125°C |
| Inductance Frequency - Test | 100 kHz | 100 kHz |
| Features | - | - |
| Mounting Type | Surface Mount | Surface Mount |
| Package / Case | Nonstandard | Nonstandard |
| Supplier Device Package | - | - |
| Size / Dimension | 0.260" L x 0.175" W (6.60mm x 4.45mm) | 0.260" L x 0.175" W (6.60mm x 4.45mm) |
| Height - Seated (Max) | 0.115" (2.92mm) | 0.115" (2.92mm) |
