Please send RFQ , we will respond immediately.

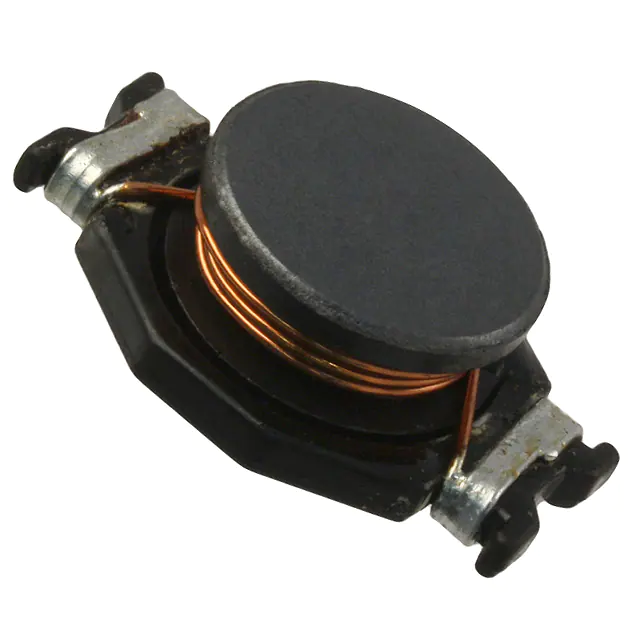

| Part Number | SDR2207-6R0ML | SDR2207-6R8ML |
|---|---|---|
| Manufacturer | Bourns Inc. | Bourns Inc. |
| Product Status | Active | Active |
| Type | Drum Core, Wirewound | Drum Core, Wirewound |
| Material - Core | Ferrite | Ferrite |
| Inductance | 6 µH | 6.8 µH |
| Tolerance | ±20% | ±20% |
| Current Rating (Amps) | 7.5 A | 7.5 A |
| Current - Saturation (Isat) | 12A | 12A |
| Shielding | Unshielded | Unshielded |
| DC Resistance (DCR) | 17mOhm Max | 14.2mOhm Max |
| Q @ Freq | 43 @ 3MHz | 38 @ 3MHz |
| Frequency - Self Resonant | 28MHz | 27MHz |
| Ratings | - | - |
| Operating Temperature | -40°C ~ 125°C | -40°C ~ 125°C |
| Inductance Frequency - Test | 100 kHz | 100 kHz |
| Features | - | - |
| Mounting Type | Surface Mount | Surface Mount |
| Package / Case | Nonstandard | Nonstandard |
| Supplier Device Package | - | - |
| Size / Dimension | 0.866" L x 0.591" W (22.00mm x 15.00mm) | 0.866" L x 0.591" W (22.00mm x 15.00mm) |
| Height - Seated (Max) | 0.307" (7.80mm) | 0.307" (7.80mm) |
