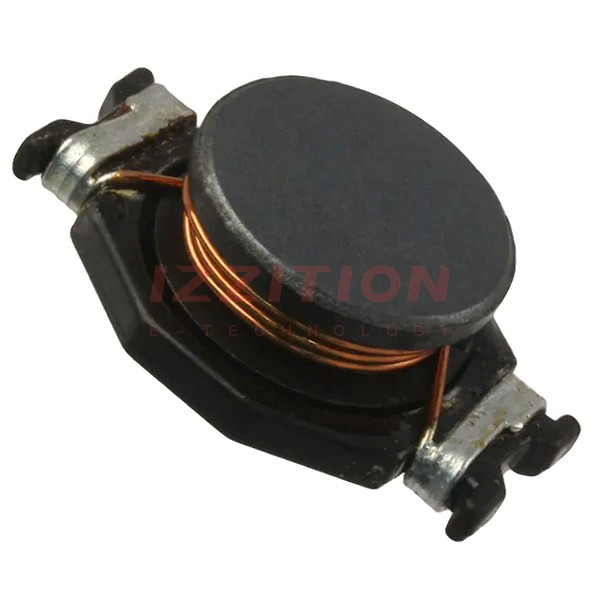

| Part Number | SDR2207-1R8ML | SDR2207-6R8ML | SDR2207-7R8ML | SDR2207-1R2ML | SDR2207-1R5ML | SDR2207-1R8M |
|---|---|---|---|---|---|---|
| Manufacturer | Bourns Inc. | Bourns Inc. | Bourns Inc. | Bourns Inc. | Bourns Inc. | Bourns Inc. |
| Product Status | Active | Active | Active | Active | Active | Obsolete |
| Type | Drum Core, Wirewound | Drum Core, Wirewound | Drum Core, Wirewound | Drum Core, Wirewound | Drum Core, Wirewound | Drum Core, Wirewound |
| Material - Core | Ferrite | Ferrite | Ferrite | Ferrite | Ferrite | Ferrite |
| Inductance | 1.8 µH | 6.8 µH | 7.8 µH | 1.2 µH | 1.5 µH | 1.8 µH |
| Tolerance | ±20% | ±20% | ±20% | ±20% | ±20% | ±20% |
| Current Rating (Amps) | 13 A | 7.5 A | 7.5 A | 15 A | 15 A | 13 A |
| Current - Saturation (Isat) | 25A | 12A | 11A | 30A | 25A | 25A |
| Shielding | Unshielded | Unshielded | Unshielded | Unshielded | Unshielded | Unshielded |
| DC Resistance (DCR) | 4.5mOhm Max | 14.2mOhm Max | 20mOhm Max | 3.8mOhm Max | 5mOhm Max | 4.5mOhm Max |
| Q @ Freq | 31 @ 3MHz | 38 @ 3MHz | 36 @ 3MHz | 30 @ 3MHz | 30 @ 3MHz | 31 @ 3MHz |
| Frequency - Self Resonant | 51MHz | 27MHz | 26MHz | 70MHz | 60MHz | 51MHz |
| Ratings | - | - | - | - | - | - |
| Operating Temperature | -40°C ~ 125°C | -40°C ~ 125°C | -40°C ~ 125°C | -40°C ~ 125°C | -40°C ~ 125°C | -40°C ~ 125°C |
| Inductance Frequency - Test | 100 kHz | 100 kHz | 100 kHz | 100 kHz | 100 kHz | 100 kHz |
| Features | - | - | - | - | - | - |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | Nonstandard | Nonstandard | Nonstandard | Nonstandard | Nonstandard | Nonstandard |
| Supplier Device Package | - | - | - | - | - | - |
| Size / Dimension | 0.866" L x 0.591" W (22.00mm x 15.00mm) | 0.866" L x 0.591" W (22.00mm x 15.00mm) | 0.866" L x 0.591" W (22.00mm x 15.00mm) | 0.866" L x 0.591" W (22.00mm x 15.00mm) | 0.866" L x 0.591" W (22.00mm x 15.00mm) | 0.866" L x 0.591" W (22.00mm x 15.00mm) |
| Height - Seated (Max) | 0.307" (7.80mm) | 0.307" (7.80mm) | 0.307" (7.80mm) | 0.307" (7.80mm) | 0.307" (7.80mm) | 0.307" (7.80mm) |
