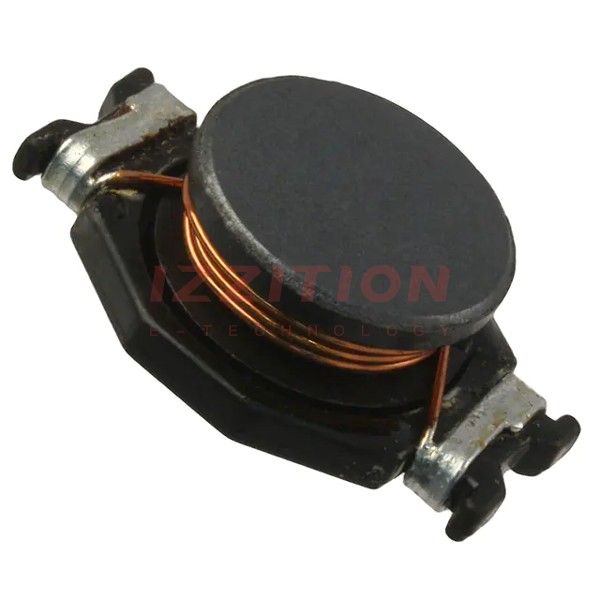

| Part Number | SDR2207-121KL | SDR2207-221KL | SDR2207-151KL | SDR2207-181KL | SDR2207-821KL | SDR2207-101KL |
|---|---|---|---|---|---|---|
| Manufacturer | Bourns Inc. | Bourns Inc. | Bourns Inc. | Bourns Inc. | Bourns Inc. | Bourns Inc. |
| Product Status | Active | Active | Active | Active | Active | Active |
| Type | Drum Core, Wirewound | Drum Core, Wirewound | Drum Core, Wirewound | Drum Core, Wirewound | Drum Core, Wirewound | Drum Core, Wirewound |
| Material - Core | Ferrite | Ferrite | Ferrite | Ferrite | Ferrite | Ferrite |
| Inductance | 120 µH | 220 µH | 150 µH | 180 µH | 820 µH | 100 µH |
| Tolerance | ±10% | ±10% | ±10% | ±10% | ±10% | ±10% |
| Current Rating (Amps) | 1.6 A | 1.2 A | 1.5 A | 1.3 A | 600 mA | 2.2 A |
| Current - Saturation (Isat) | 3A | 2.4A | 2.6A | 2.5A | 1.1A | 3A |
| Shielding | Unshielded | Unshielded | Unshielded | Unshielded | Unshielded | Unshielded |
| DC Resistance (DCR) | 230mOhm Max | 380mOhm Max | 250mOhm Max | 300mOhm Max | 1.4Ohm Max | 168mOhm Max |
| Q @ Freq | 20 @ 2MHz | 19 @ 2MHz | 22 @ 2MHz | 20 @ 2MHz | 16 @ 1MHz | 18 @ 2MHz |
| Frequency - Self Resonant | 6MHz | 5.5MHz | 5.8MHz | 5.7MHz | 3.9MHz | 6.2MHz |
| Ratings | - | - | - | - | - | - |
| Operating Temperature | -40°C ~ 125°C | -40°C ~ 125°C | -40°C ~ 125°C | -40°C ~ 125°C | -40°C ~ 125°C | -40°C ~ 125°C |
| Inductance Frequency - Test | 100 kHz | 100 kHz | 100 kHz | 100 kHz | 100 kHz | 100 kHz |
| Features | - | - | - | - | - | - |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | Nonstandard | Nonstandard | Nonstandard | Nonstandard | Nonstandard | Nonstandard |
| Supplier Device Package | - | - | - | - | - | - |
| Size / Dimension | 0.866" L x 0.591" W (22.00mm x 15.00mm) | 0.866" L x 0.591" W (22.00mm x 15.00mm) | 0.866" L x 0.591" W (22.00mm x 15.00mm) | 0.866" L x 0.591" W (22.00mm x 15.00mm) | 0.866" L x 0.591" W (22.00mm x 15.00mm) | 0.866" L x 0.591" W (22.00mm x 15.00mm) |
| Height - Seated (Max) | 0.307" (7.80mm) | 0.307" (7.80mm) | 0.307" (7.80mm) | 0.307" (7.80mm) | 0.307" (7.80mm) | 0.307" (7.80mm) |
