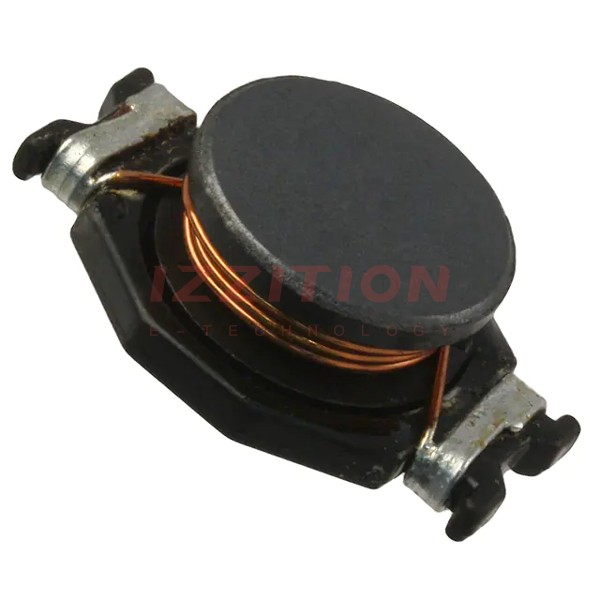

| Part Number | SDR2207-120YL | SDR2207-220YL | SDR2207-150YL | SDR2207-180YL |
|---|---|---|---|---|
| Manufacturer | Bourns Inc. | Bourns Inc. | Bourns Inc. | Bourns Inc. |
| Product Status | Active | Active | Active | Active |
| Type | Drum Core, Wirewound | Drum Core, Wirewound | Drum Core, Wirewound | Drum Core, Wirewound |
| Material - Core | Ferrite | Ferrite | Ferrite | Ferrite |
| Inductance | 12 µH | 22 µH | 15 µH | 18 µH |
| Tolerance | ±15% | ±15% | ±15% | ±15% |
| Current Rating (Amps) | 5.5 A | 4 A | 5 A | 4.6 A |
| Current - Saturation (Isat) | 9.5A | 6.5A | 9A | 8A |
| Shielding | Unshielded | Unshielded | Unshielded | Unshielded |
| DC Resistance (DCR) | 23.6mOhm Max | 39.4mOhm Max | 28.8mOhm Max | 33mOhm Max |
| Q @ Freq | 50 @ 5MHz | 27 @ 3MHz | 38 @ 5MHz | 46 @ 5MHz |
| Frequency - Self Resonant | 19MHz | 14MHz | 16MHz | 15MHz |
| Ratings | - | - | - | - |
| Operating Temperature | -40°C ~ 125°C | -40°C ~ 125°C | -40°C ~ 125°C | -40°C ~ 125°C |
| Inductance Frequency - Test | 100 kHz | 100 kHz | 100 kHz | 100 kHz |
| Features | - | - | - | - |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | Nonstandard | Nonstandard | Nonstandard | Nonstandard |
| Supplier Device Package | - | - | - | - |
| Size / Dimension | 0.866" L x 0.591" W (22.00mm x 15.00mm) | 0.866" L x 0.591" W (22.00mm x 15.00mm) | 0.866" L x 0.591" W (22.00mm x 15.00mm) | 0.866" L x 0.591" W (22.00mm x 15.00mm) |
| Height - Seated (Max) | 0.307" (7.80mm) | 0.307" (7.80mm) | 0.307" (7.80mm) | 0.307" (7.80mm) |
