SDR1806-2R2ML
  • Share:

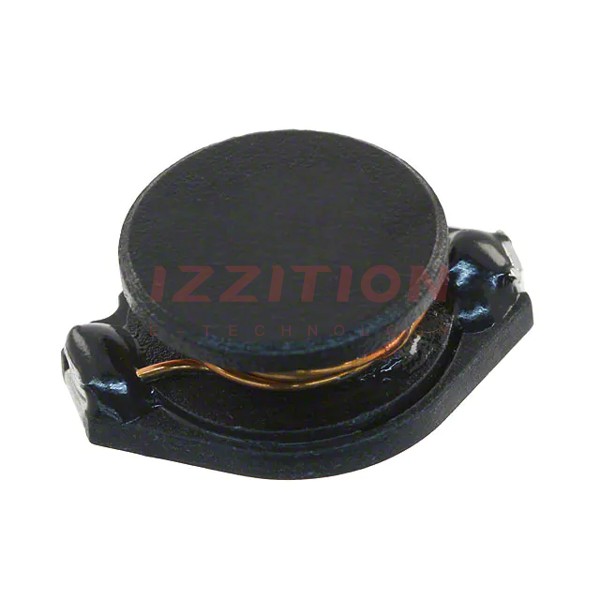

Bourns Inc. SDR1806-2R2ML

Manufacturer No:
SDR1806-2R2ML
Manufacturer:
Bourns Inc.
Package:
Tape & Reel (TR)
Datasheet:
SDR1806-2R2ML Datasheet
ECAD Model:
-
Description:
FIXED IND 2.2UH 9A 6.8 MOHM SMD
Delivery:
Payment:
iso14001
iso45001
iso9001
iso13485

Product Attributes

Type:Drum Core, Wirewound
Material - Core:Ferrite
Inductance:2.2 µH
Tolerance:±20%
Current Rating (Amps):9 A
Current - Saturation (Isat):22A
Shielding:Unshielded
DC Resistance (DCR):6.8mOhm Max
Q @ Freq:22 @ 7.96MHz
Frequency - Self Resonant:55MHz
Ratings:-
Operating Temperature:-40°C ~ 125°C
Inductance Frequency - Test:100 kHz
Features:-
Mounting Type:Surface Mount
Package / Case:Nonstandard
Supplier Device Package:-
Size / Dimension:0.720" L x 0.551" W (18.30mm x 14.00mm)
Height - Seated (Max):0.272" (6.90mm)
0 Remaining View Similar

In Stock

$1.27
350

Please send RFQ , we will respond immediately.
