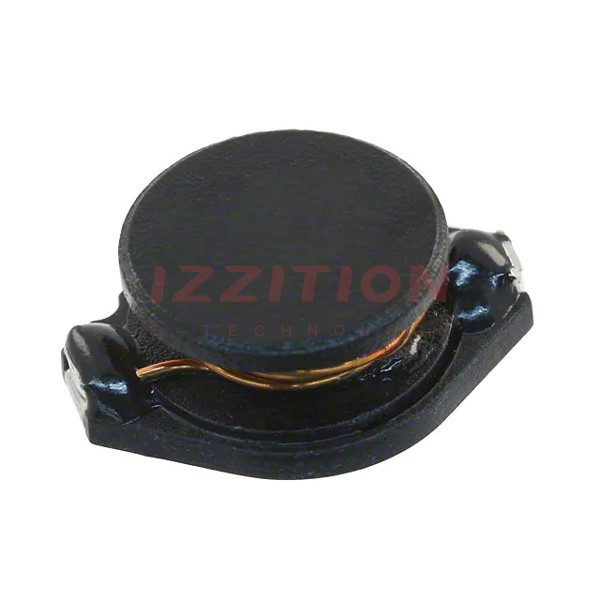

| Part Number | SDR1806-151KL | SDR1806-101KL |
|---|---|---|
| Manufacturer | Bourns Inc. | Bourns Inc. |
| Product Status | Active | Active |
| Type | Drum Core, Wirewound | Drum Core, Wirewound |
| Material - Core | Ferrite | Ferrite |
| Inductance | 150 µH | 100 µH |
| Tolerance | ±10% | ±10% |
| Current Rating (Amps) | 1.4 A | 1.7 A |
| Current - Saturation (Isat) | 2.6A | 3.2A |
| Shielding | Unshielded | Unshielded |
| DC Resistance (DCR) | 270mOhm Max | 190mOhm Max |
| Q @ Freq | 23 @ 796kHz | 25 @ 796kHz |
| Frequency - Self Resonant | 5MHz | 7MHz |
| Ratings | - | - |
| Operating Temperature | -40°C ~ 125°C | -40°C ~ 125°C |
| Inductance Frequency - Test | 100 kHz | 100 kHz |
| Features | - | - |
| Mounting Type | Surface Mount | Surface Mount |
| Package / Case | Nonstandard | Nonstandard |
| Supplier Device Package | - | - |
| Size / Dimension | 0.720" L x 0.551" W (18.30mm x 14.00mm) | 0.720" L x 0.551" W (18.30mm x 14.00mm) |
| Height - Seated (Max) | 0.272" (6.90mm) | 0.272" (6.90mm) |
