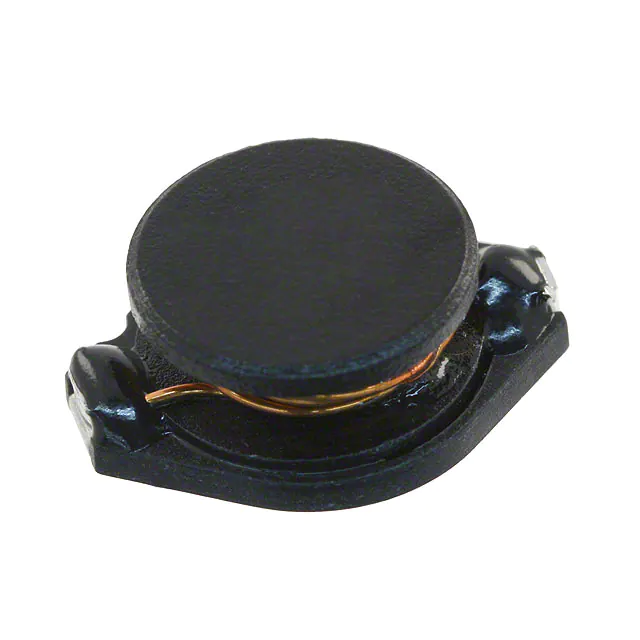

| Part Number | SDR1806-150ML | SDR1806-1R0ML | SDR1806-100ML |
|---|---|---|---|
| Manufacturer | Bourns Inc. | Bourns Inc. | Bourns Inc. |
| Product Status | Active | Active | Active |
| Type | Drum Core, Wirewound | Drum Core, Wirewound | Drum Core, Wirewound |
| Material - Core | Ferrite | Ferrite | Ferrite |
| Inductance | 15 µH | 1 µH | 10 µH |
| Tolerance | ±20% | ±20% | ±20% |
| Current Rating (Amps) | 4.3 A | 10 A | 5.3 A |
| Current - Saturation (Isat) | 8A | 30A | 10A |
| Shielding | Unshielded | Unshielded | Unshielded |
| DC Resistance (DCR) | 35mOhm Max | 4mOhm Max | 25mOhm Max |
| Q @ Freq | 20 @ 2.52MHz | 21 @ 7.96MHz | 22 @ 2.52MHz |
| Frequency - Self Resonant | 17MHz | 100MHz | 25MHz |
| Ratings | - | - | - |
| Operating Temperature | -40°C ~ 125°C | -40°C ~ 125°C | -40°C ~ 125°C |
| Inductance Frequency - Test | 100 kHz | 100 kHz | 100 kHz |
| Features | - | - | - |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | Nonstandard | Nonstandard | Nonstandard |
| Supplier Device Package | - | - | - |
| Size / Dimension | 0.720" L x 0.551" W (18.30mm x 14.00mm) | 0.720" L x 0.551" W (18.30mm x 14.00mm) | 0.720" L x 0.551" W (18.30mm x 14.00mm) |
| Height - Seated (Max) | 0.272" (6.90mm) | 0.272" (6.90mm) | 0.272" (6.90mm) |
