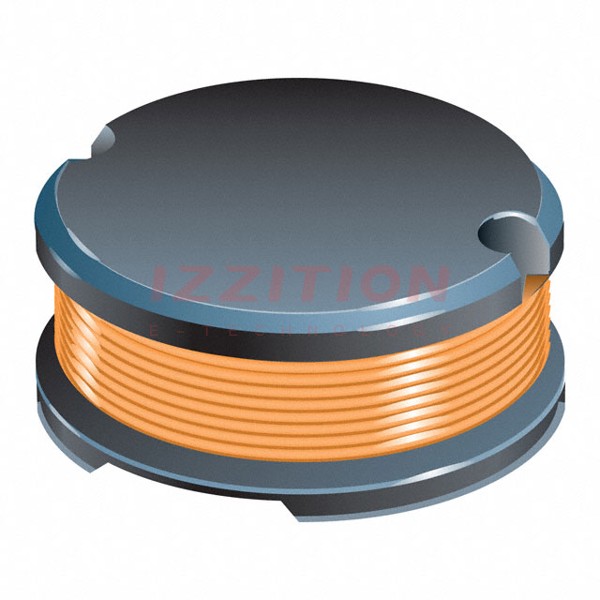

| Part Number | SDR1307A-181K | SDR1307A-681K | SDR1307A-101K | SDR1307A-121K | SDR1307A-151K |
|---|---|---|---|---|---|
| Manufacturer | Bourns Inc. | Bourns Inc. | Bourns Inc. | Bourns Inc. | Bourns Inc. |
| Product Status | Active | Active | Active | Active | Active |
| Type | Drum Core, Wirewound | Drum Core, Wirewound | Drum Core, Wirewound | Drum Core, Wirewound | Drum Core, Wirewound |
| Material - Core | Ferrite | Ferrite | Ferrite | Ferrite | Ferrite |
| Inductance | 180 µH | 680 µH | 100 µH | 120 µH | 150 µH |
| Tolerance | ±10% | ±10% | ±10% | ±10% | ±10% |
| Current Rating (Amps) | 1.5 A | 800 mA | 1.9 A | 1.8 A | 1.6 A |
| Current - Saturation (Isat) | 2.3A | 1.2A | 3A | 2.8A | 2.6A |
| Shielding | Unshielded | Unshielded | Unshielded | Unshielded | Unshielded |
| DC Resistance (DCR) | 280mOhm Max | 1Ohm Max | 180mOhm Max | 210mOhm Max | 250mOhm Max |
| Q @ Freq | 18 @ 796kHz | 10 @ 796kHz | 25 @ 796kHz | 20 @ 796kHz | 20 @ 796kHz |
| Frequency - Self Resonant | 4MHz | 1.6MHz | 5.8MHz | 5.5MHz | 4.5MHz |
| Ratings | AEC-Q200 | AEC-Q200 | AEC-Q200 | AEC-Q200 | AEC-Q200 |
| Operating Temperature | -40°C ~ 125°C | -40°C ~ 125°C | -40°C ~ 125°C | -40°C ~ 125°C | -40°C ~ 125°C |
| Inductance Frequency - Test | 100 kHz | 100 kHz | 100 kHz | 100 kHz | 100 kHz |
| Features | - | - | - | - | - |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | Nonstandard | Nonstandard | Nonstandard | Nonstandard | Nonstandard |
| Supplier Device Package | - | - | - | - | - |
| Size / Dimension | 0.512" Dia (13.00mm) | 0.512" Dia (13.00mm) | 0.512" Dia (13.00mm) | 0.512" Dia (13.00mm) | 0.512" Dia (13.00mm) |
| Height - Seated (Max) | 0.287" (7.30mm) | 0.287" (7.30mm) | 0.287" (7.30mm) | 0.287" (7.30mm) | 0.287" (7.30mm) |
