SDR1307-472KL
  • Share:

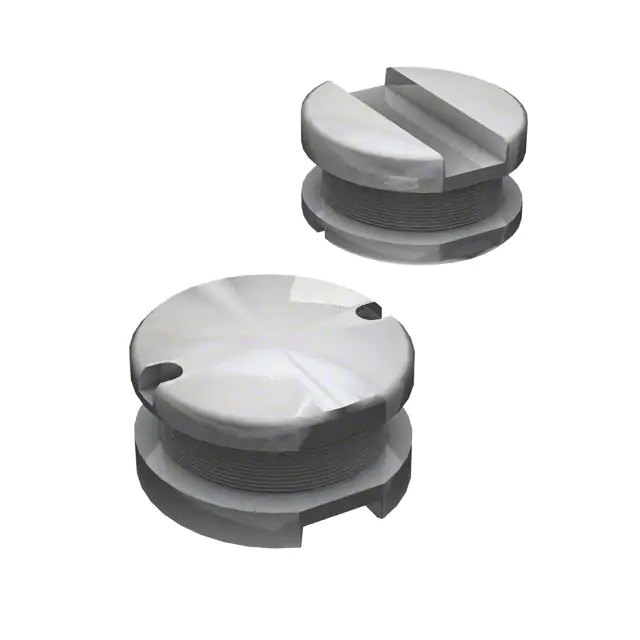

Bourns Inc. SDR1307-472KL

Manufacturer No:
SDR1307-472KL
Manufacturer:
Bourns Inc.
Package:
Tape & Reel (TR)
Datasheet:
SDR1307-472KL Datasheet
ECAD Model:
-
Description:
FIXED IND 4.7MH SMD
Delivery:
Payment:
iso14001
iso45001
iso9001
iso13485

Product Attributes

Type:Drum Core, Wirewound
Material - Core:Ferrite
Inductance:4.7 mH
Tolerance:±10%
Current Rating (Amps):-
Current - Saturation (Isat):-
Shielding:Unshielded
DC Resistance (DCR):-
Q @ Freq:-
Frequency - Self Resonant:-
Ratings:-
Operating Temperature:-40°C ~ 125°C
Inductance Frequency - Test:100 kHz
Features:-
Mounting Type:Surface Mount
Package / Case:Nonstandard
Supplier Device Package:-
Size / Dimension:0.512" L x 0.512" W (13.00mm x 13.00mm)
Height - Seated (Max):0.287" (7.30mm)
0 Remaining View Similar

In Stock

$0.53
1,767

Please send RFQ , we will respond immediately.

Similar Products

Part Number SDR1307-472KL SDR1307-470KL   SDR1307-471KL
Manufacturer Bourns Inc. Bourns Inc. Bourns Inc.
Product Status Active Active Active
Type Drum Core, Wirewound Drum Core, Wirewound Drum Core, Wirewound
Material - Core Ferrite Ferrite Ferrite
Inductance 4.7 mH 47 µH 470 µH
Tolerance ±10% ±10% ±10%
Current Rating (Amps) - 2.7 A 900 mA
Current - Saturation (Isat) - 4.2A 1.4A
Shielding Unshielded Unshielded Unshielded
DC Resistance (DCR) - 82mOhm Max 720mOhm Max
Q @ Freq - 24 @ 2.52MHz 12 @ 796kHz
Frequency - Self Resonant - 7.5MHz 2.2MHz
Ratings - - -
Operating Temperature -40°C ~ 125°C -40°C ~ 125°C -40°C ~ 125°C
Inductance Frequency - Test 100 kHz 100 kHz 100 kHz
Features - - -
Mounting Type Surface Mount Surface Mount Surface Mount
Package / Case Nonstandard Nonstandard Nonstandard
Supplier Device Package - - -
Size / Dimension 0.512" L x 0.512" W (13.00mm x 13.00mm) 0.512" L x 0.512" W (13.00mm x 13.00mm) 0.512" L x 0.512" W (13.00mm x 13.00mm)
Height - Seated (Max) 0.287" (7.30mm) 0.287" (7.30mm) 0.287" (7.30mm)
