Please send RFQ , we will respond immediately.

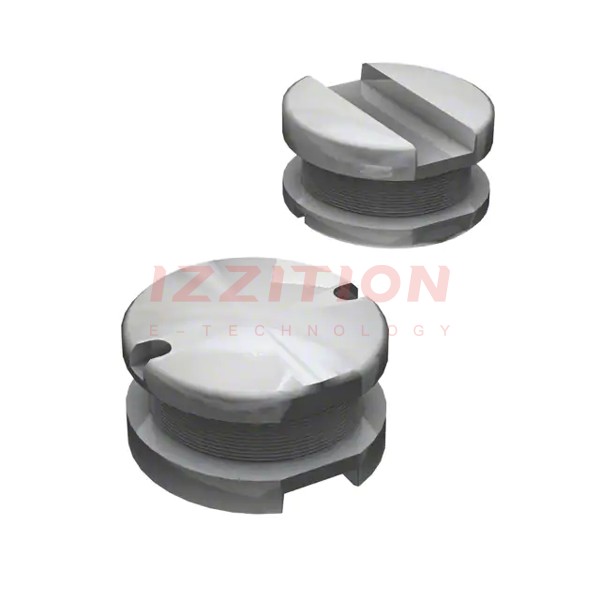

| Part Number | SDR1307-220ML | SDR1307-270ML | SDR1307-221ML | SDR1307-120ML |
|---|---|---|---|---|
| Manufacturer | Bourns Inc. | Bourns Inc. | Bourns Inc. | Bourns Inc. |
| Product Status | Active | Active | Active | Active |
| Type | Drum Core, Wirewound | Drum Core, Wirewound | Drum Core, Wirewound | Drum Core, Wirewound |
| Material - Core | Ferrite | Ferrite | Ferrite | Ferrite |
| Inductance | 22 µH | 27 µH | 220 µH | 12 µH |
| Tolerance | ±20% | ±20% | ±20% | ±20% |
| Current Rating (Amps) | 3.6 A | 3.3 A | 1.3 A | 4.8 A |
| Current - Saturation (Isat) | 6.5A | 5.5A | 2.1A | 8A |
| Shielding | Unshielded | Unshielded | Unshielded | Unshielded |
| DC Resistance (DCR) | 47mOhm Max | 60mOhm Max | 360mOhm Max | 30mOhm Max |
| Q @ Freq | 40 @ 2.52MHz | 35 @ 2.52MHz | 15 @ 796kHz | 25 @ 2.52MHz |
| Frequency - Self Resonant | 15MHz | 11MHz | 3.8MHz | 20MHz |
| Ratings | - | - | - | - |
| Operating Temperature | -40°C ~ 125°C | -40°C ~ 125°C | -40°C ~ 125°C | -40°C ~ 125°C |
| Inductance Frequency - Test | 100 kHz | 100 kHz | 100 kHz | 100 kHz |
| Features | - | - | - | - |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | Nonstandard | Nonstandard | Nonstandard | Nonstandard |
| Supplier Device Package | - | - | - | - |
| Size / Dimension | 0.512" L x 0.512" W (13.00mm x 13.00mm) | 0.512" L x 0.512" W (13.00mm x 13.00mm) | 0.512" L x 0.512" W (13.00mm x 13.00mm) | 0.512" L x 0.512" W (13.00mm x 13.00mm) |
| Height - Seated (Max) | 0.287" (7.30mm) | 0.287" (7.30mm) | 0.287" (7.30mm) | 0.287" (7.30mm) |
