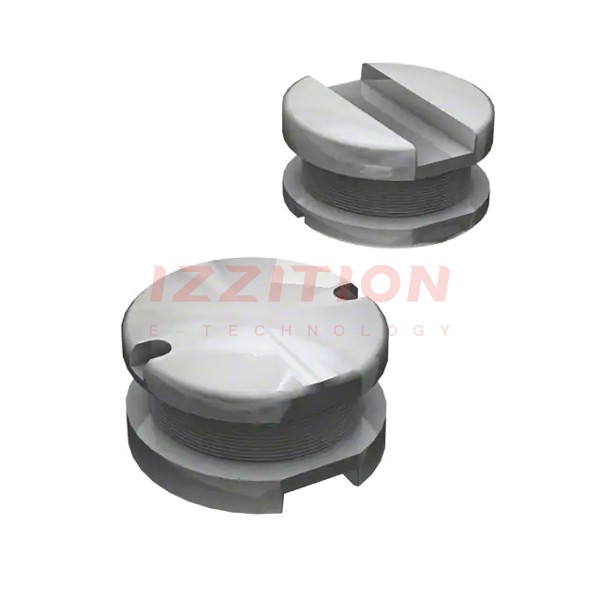

| Part Number | SDR1307-180ML | SDR1307-100ML | SDR1307-120ML | SDR1307-150ML |
|---|---|---|---|---|
| Manufacturer | Bourns Inc. | Bourns Inc. | Bourns Inc. | Bourns Inc. |
| Product Status | Active | Active | Active | Active |
| Type | Drum Core, Wirewound | Drum Core, Wirewound | Drum Core, Wirewound | Drum Core, Wirewound |
| Material - Core | Ferrite | Ferrite | Ferrite | Ferrite |
| Inductance | 18 µH | 10 µH | 12 µH | 15 µH |
| Tolerance | ±20% | ±20% | ±20% | ±20% |
| Current Rating (Amps) | 4.2 A | 5.6 A | 4.8 A | 4.5 A |
| Current - Saturation (Isat) | 7A | 9.2A | 8A | 7.5A |
| Shielding | Unshielded | Unshielded | Unshielded | Unshielded |
| DC Resistance (DCR) | 36mOhm Max | 21mOhm Max | 30mOhm Max | 34mOhm Max |
| Q @ Freq | 28 @ 2.52MHz | 22 @ 2.52MHz | 25 @ 2.52MHz | 28 @ 2.52MHz |
| Frequency - Self Resonant | 16MHz | 22MHz | 20MHz | 17MHz |
| Ratings | - | - | - | - |
| Operating Temperature | -40°C ~ 125°C | -40°C ~ 125°C | -40°C ~ 125°C | -40°C ~ 125°C |
| Inductance Frequency - Test | 100 kHz | 100 kHz | 100 kHz | 100 kHz |
| Features | - | - | - | - |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | Nonstandard | Nonstandard | Nonstandard | Nonstandard |
| Supplier Device Package | - | - | - | - |
| Size / Dimension | 0.512" L x 0.512" W (13.00mm x 13.00mm) | 0.512" L x 0.512" W (13.00mm x 13.00mm) | 0.512" L x 0.512" W (13.00mm x 13.00mm) | 0.512" L x 0.512" W (13.00mm x 13.00mm) |
| Height - Seated (Max) | 0.287" (7.30mm) | 0.287" (7.30mm) | 0.287" (7.30mm) | 0.287" (7.30mm) |
