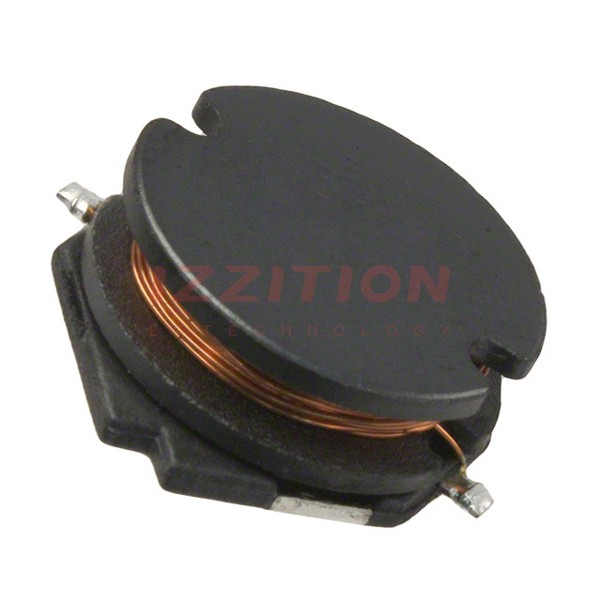

| Part Number | SDR1305-3R5Y | SDR1305-2R5Y |
|---|---|---|
| Manufacturer | Bourns Inc. | Bourns Inc. |
| Product Status | Active | Active |
| Type | Drum Core, Wirewound | Drum Core, Wirewound |
| Material - Core | Ferrite | Ferrite |
| Inductance | 3.5 µH | 2.5 µH |
| Tolerance | ±25% | ±25% |
| Current Rating (Amps) | 6 A | 7.2 A |
| Current - Saturation (Isat) | 7A | 8A |
| Shielding | Unshielded | Unshielded |
| DC Resistance (DCR) | 10.5mOhm Max | 9.8mOhm Max |
| Q @ Freq | 20 @ 7.96MHz | 19 @ 7.96MHz |
| Frequency - Self Resonant | 43MHz | 61MHz |
| Ratings | - | - |
| Operating Temperature | -40°C ~ 125°C | -40°C ~ 125°C |
| Inductance Frequency - Test | 100 kHz | 100 kHz |
| Features | - | - |
| Mounting Type | Surface Mount | Surface Mount |
| Package / Case | Nonstandard | Nonstandard |
| Supplier Device Package | - | - |
| Size / Dimension | 0.500" L x 0.500" W (12.70mm x 12.70mm) | 0.500" L x 0.500" W (12.70mm x 12.70mm) |
| Height - Seated (Max) | 0.201" (5.10mm) | 0.201" (5.10mm) |
