SDR1305-330M
  • Share:

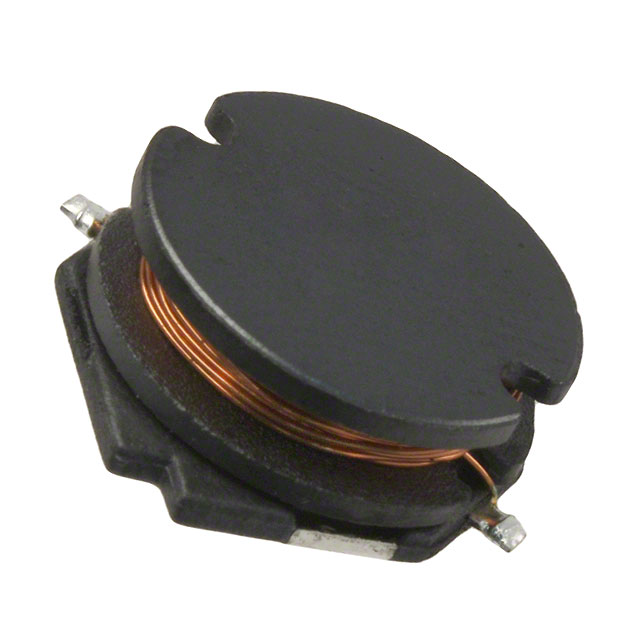

Bourns Inc. SDR1305-330M

Manufacturer No:
SDR1305-330M
Manufacturer:
Bourns Inc.
Package:
Tape & Reel (TR)
Datasheet:
SDR1305-330M Datasheet
ECAD Model:
-
Description:
FIXED IND 33UH 2.5A 85 MOHM SMD
Delivery:
Payment:
iso14001
iso45001
iso9001
iso13485

Product Attributes

Type:Drum Core, Wirewound
Material - Core:Ferrite
Inductance:33 µH
Tolerance:±20%
Current Rating (Amps):2.5 A
Current - Saturation (Isat):2.6A
Shielding:Unshielded
DC Resistance (DCR):85mOhm Max
Q @ Freq:23 @ 2.52MHz
Frequency - Self Resonant:16MHz
Ratings:-
Operating Temperature:-40°C ~ 125°C
Inductance Frequency - Test:100 kHz
Features:-
Mounting Type:Surface Mount
Package / Case:Nonstandard
Supplier Device Package:-
Size / Dimension:0.500" L x 0.500" W (12.70mm x 12.70mm)
Height - Seated (Max):0.201" (5.10mm)
0 Remaining View Similar

In Stock

$0.97
730

Please send RFQ , we will respond immediately.
