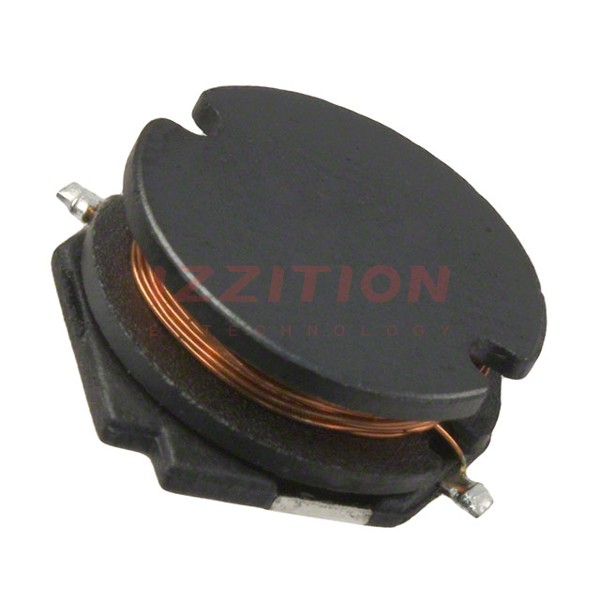

| Part Number | SDR1305-150M | SDR1305-100M |
|---|---|---|
| Manufacturer | Bourns Inc. | Bourns Inc. |
| Product Status | Active | Active |
| Type | Drum Core, Wirewound | Drum Core, Wirewound |
| Material - Core | Ferrite | Ferrite |
| Inductance | 15 µH | 10 µH |
| Tolerance | ±20% | ±20% |
| Current Rating (Amps) | 3.3 A | 3.6 A |
| Current - Saturation (Isat) | 3.7A | 4.4A |
| Shielding | Unshielded | Unshielded |
| DC Resistance (DCR) | 46mOhm Max | 37mOhm Max |
| Q @ Freq | 28 @ 2.52MHz | 35 @ 2.52MHz |
| Frequency - Self Resonant | 24MHz | 27MHz |
| Ratings | - | - |
| Operating Temperature | -40°C ~ 125°C | -40°C ~ 125°C |
| Inductance Frequency - Test | 100 kHz | 100 kHz |
| Features | - | - |
| Mounting Type | Surface Mount | Surface Mount |
| Package / Case | Nonstandard | Nonstandard |
| Supplier Device Package | - | - |
| Size / Dimension | 0.500" L x 0.500" W (12.70mm x 12.70mm) | 0.500" L x 0.500" W (12.70mm x 12.70mm) |
| Height - Seated (Max) | 0.201" (5.10mm) | 0.201" (5.10mm) |
