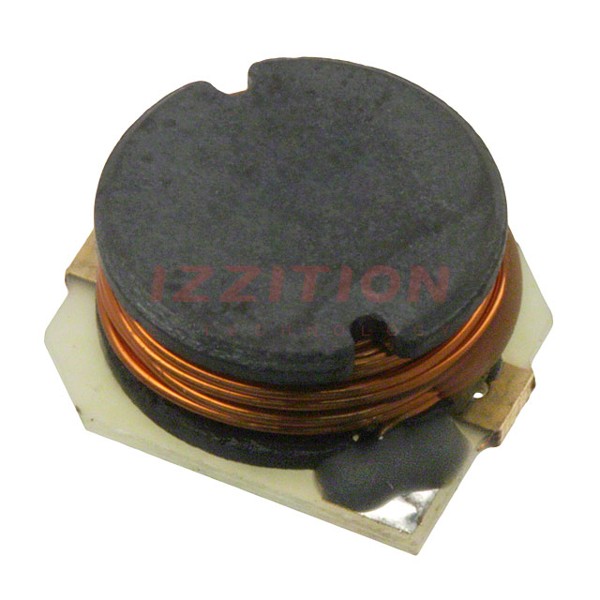

| Part Number | SDR1105-680KL | SDR1005-680KL |
|---|---|---|
| Manufacturer | Bourns Inc. | Bourns Inc. |
| Product Status | Active | Active |
| Type | Drum Core, Wirewound | Drum Core, Wirewound |
| Material - Core | Ferrite | Ferrite |
| Inductance | 68 µH | 68 µH |
| Tolerance | ±10% | ±10% |
| Current Rating (Amps) | 1.8 A | 1.2 A |
| Current - Saturation (Isat) | 3.5A | 1.4A |
| Shielding | Unshielded | Unshielded |
| DC Resistance (DCR) | 210mOhm Max | 240mOhm Max |
| Q @ Freq | - | 24 @ 2.2MHz |
| Frequency - Self Resonant | - | 11MHz |
| Ratings | AEC-Q200 | - |
| Operating Temperature | -40°C ~ 125°C | -40°C ~ 125°C |
| Inductance Frequency - Test | 1 kHz | 1 kHz |
| Features | - | - |
| Mounting Type | Surface Mount | Surface Mount |
| Package / Case | Nonstandard | Nonstandard |
| Supplier Device Package | - | - |
| Size / Dimension | 0.437" L x 0.394" W (11.10mm x 10.00mm) | 0.500" L x 0.394" W (12.70mm x 10.00mm) |
| Height - Seated (Max) | 0.197" (5.00mm) | 0.197" (5.00mm) |
