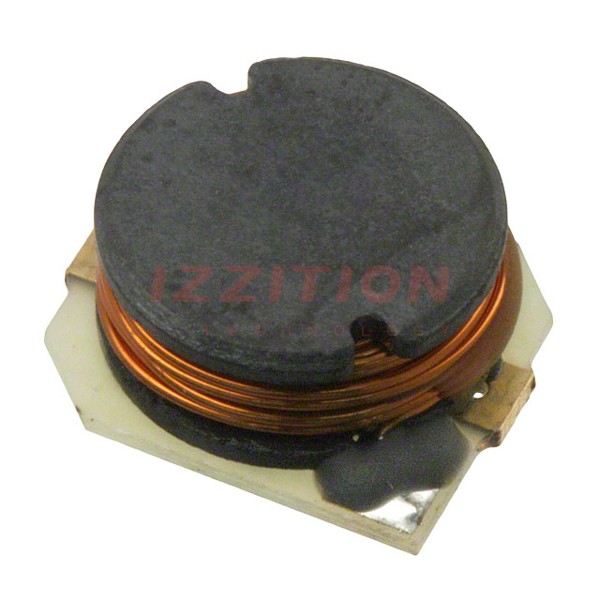

| Part Number | SDR1105-120ML | SDR1105-220ML | SDR1105-150ML | SDR1105-180ML | SDR1105-100ML |
|---|---|---|---|---|---|
| Manufacturer | Bourns Inc. | Bourns Inc. | Bourns Inc. | Bourns Inc. | Bourns Inc. |
| Product Status | Active | Active | Active | Active | Active |
| Type | Drum Core, Wirewound | Drum Core, Wirewound | Drum Core, Wirewound | Drum Core, Wirewound | Drum Core, Wirewound |
| Material - Core | Ferrite | Ferrite | Ferrite | Ferrite | Ferrite |
| Inductance | 12 µH | 22 µH | 15 µH | 18 µH | 10 µH |
| Tolerance | ±20% | ±20% | ±20% | ±20% | ±20% |
| Current Rating (Amps) | 3.8 A | 3 A | 3.5 A | 3.3 A | 4 A |
| Current - Saturation (Isat) | 8A | 6.5A | 8A | 7A | 8A |
| Shielding | Unshielded | Unshielded | Unshielded | Unshielded | Unshielded |
| DC Resistance (DCR) | 48mOhm Max | 80mOhm Max | 52mOhm Max | 70mOhm Max | 45mOhm Max |
| Q @ Freq | - | - | - | - | - |
| Frequency - Self Resonant | - | - | - | - | - |
| Ratings | - | AEC-Q200 | - | - | - |
| Operating Temperature | -40°C ~ 125°C | -40°C ~ 125°C | -40°C ~ 125°C | -40°C ~ 125°C | -40°C ~ 125°C |
| Inductance Frequency - Test | 1 kHz | 1 kHz | 1 kHz | 1 kHz | 1 kHz |
| Features | - | - | - | - | - |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | Nonstandard | Nonstandard | Nonstandard | Nonstandard | Nonstandard |
| Supplier Device Package | - | - | - | - | - |
| Size / Dimension | 0.437" L x 0.394" W (11.10mm x 10.00mm) | 0.437" L x 0.394" W (11.10mm x 10.00mm) | 0.437" L x 0.394" W (11.10mm x 10.00mm) | 0.437" L x 0.394" W (11.10mm x 10.00mm) | 0.437" L x 0.394" W (11.10mm x 10.00mm) |
| Height - Seated (Max) | 0.197" (5.00mm) | 0.197" (5.00mm) | 0.197" (5.00mm) | 0.197" (5.00mm) | 0.197" (5.00mm) |
