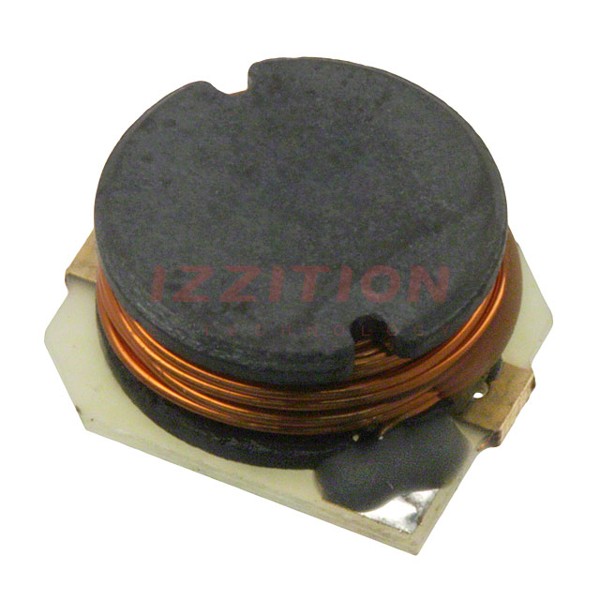

| Part Number | SDR1105-101KL | SDR1105-201KL | SDR1105-151KL |
|---|---|---|---|
| Manufacturer | Bourns Inc. | Bourns Inc. | Bourns Inc. |
| Product Status | Active | Active | Active |
| Type | Drum Core, Wirewound | Drum Core, Wirewound | Drum Core, Wirewound |
| Material - Core | Ferrite | Ferrite | Ferrite |
| Inductance | 100 µH | 200 µH | 150 µH |
| Tolerance | ±10% | ±10% | ±10% |
| Current Rating (Amps) | 1.5 A | 1 A | 1.2 A |
| Current - Saturation (Isat) | 2.8A | 1.8A | 2.3A |
| Shielding | Unshielded | Unshielded | Unshielded |
| DC Resistance (DCR) | 320mOhm Max | 650mOhm Max | 500mOhm Max |
| Q @ Freq | - | - | - |
| Frequency - Self Resonant | - | - | - |
| Ratings | - | AEC-Q200 | - |
| Operating Temperature | -40°C ~ 125°C | -40°C ~ 125°C | -40°C ~ 125°C |
| Inductance Frequency - Test | 1 kHz | 1 kHz | 1 kHz |
| Features | - | - | - |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | Nonstandard | Nonstandard | Nonstandard |
| Supplier Device Package | - | - | - |
| Size / Dimension | 0.437" L x 0.394" W (11.10mm x 10.00mm) | 0.437" L x 0.394" W (11.10mm x 10.00mm) | 0.437" L x 0.394" W (11.10mm x 10.00mm) |
| Height - Seated (Max) | 0.197" (5.00mm) | 0.197" (5.00mm) | 0.197" (5.00mm) |
