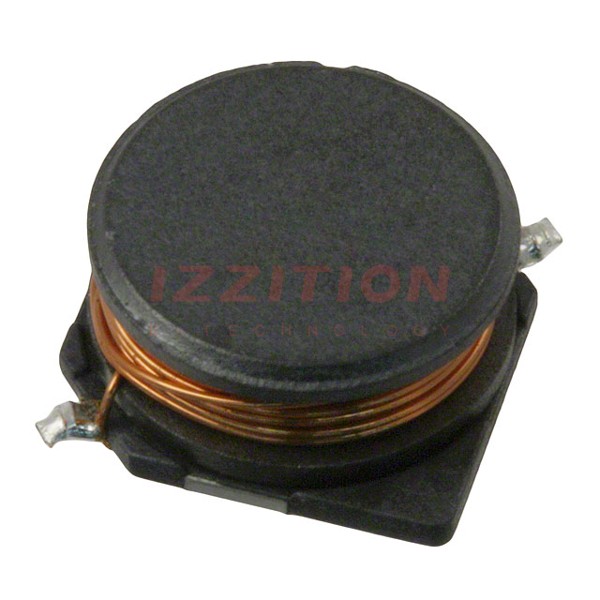

| Part Number | SDR1045-6R8M | SDR1005-6R8M |
|---|---|---|
| Manufacturer | Bourns Inc. | Bourns Inc. |
| Product Status | Active | Obsolete |
| Type | Drum Core, Wirewound | Drum Core, Wirewound |
| Material - Core | Ferrite | Ferrite |
| Inductance | 6.8 µH | 6.8 µH |
| Tolerance | ±20% | ±20% |
| Current Rating (Amps) | 3.5 A | 3.4 A |
| Current - Saturation (Isat) | 4.2A | 4.5A |
| Shielding | Unshielded | Unshielded |
| DC Resistance (DCR) | 40mOhm Max | 30mOhm Max |
| Q @ Freq | 22 @ 7.96MHz | 56 @ 2MHz |
| Frequency - Self Resonant | 35.8MHz | 31MHz |
| Ratings | - | - |
| Operating Temperature | -40°C ~ 125°C | -40°C ~ 125°C |
| Inductance Frequency - Test | 100 kHz | 1 kHz |
| Features | - | - |
| Mounting Type | Surface Mount | Surface Mount |
| Package / Case | Nonstandard | Nonstandard |
| Supplier Device Package | - | - |
| Size / Dimension | 0.394" L x 0.394" W (10.00mm x 10.00mm) | 0.500" L x 0.394" W (12.70mm x 10.00mm) |
| Height - Seated (Max) | 0.189" (4.80mm) | 0.197" (5.00mm) |
