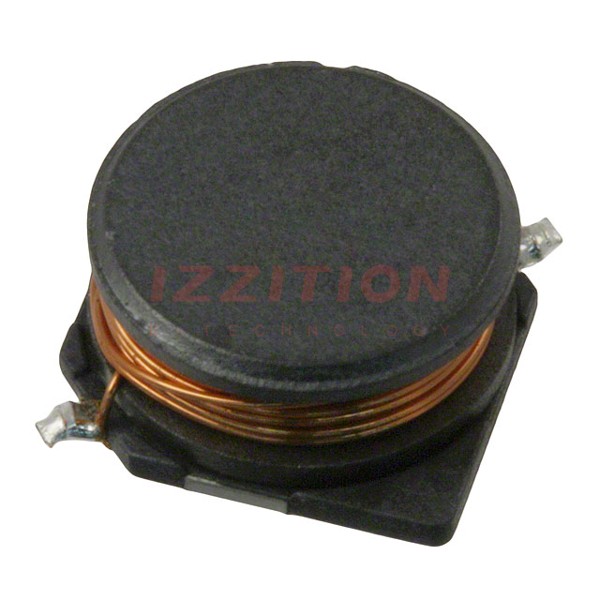

| Part Number | SDR1045-681K | SDR1005-681K |
|---|---|---|
| Manufacturer | Bourns Inc. | Bourns Inc. |
| Product Status | Active | Obsolete |
| Type | Drum Core, Wirewound | Drum Core, Wirewound |
| Material - Core | Ferrite | Ferrite |
| Inductance | 680 µH | 680 µH |
| Tolerance | ±10% | ±10% |
| Current Rating (Amps) | 430 mA | 350 mA |
| Current - Saturation (Isat) | 460mA | 400mA |
| Shielding | Unshielded | Unshielded |
| DC Resistance (DCR) | 3.3Ohm Max | 2.6Ohm Max |
| Q @ Freq | 13 @ 796kHz | 72 @ 96kHz |
| Frequency - Self Resonant | 3.6MHz | 3MHz |
| Ratings | - | - |
| Operating Temperature | -40°C ~ 125°C | -40°C ~ 125°C |
| Inductance Frequency - Test | 100 kHz | 1 kHz |
| Features | - | - |
| Mounting Type | Surface Mount | Surface Mount |
| Package / Case | Nonstandard | Nonstandard |
| Supplier Device Package | - | - |
| Size / Dimension | 0.394" L x 0.394" W (10.00mm x 10.00mm) | 0.500" L x 0.394" W (12.70mm x 10.00mm) |
| Height - Seated (Max) | 0.189" (4.80mm) | 0.197" (5.00mm) |
