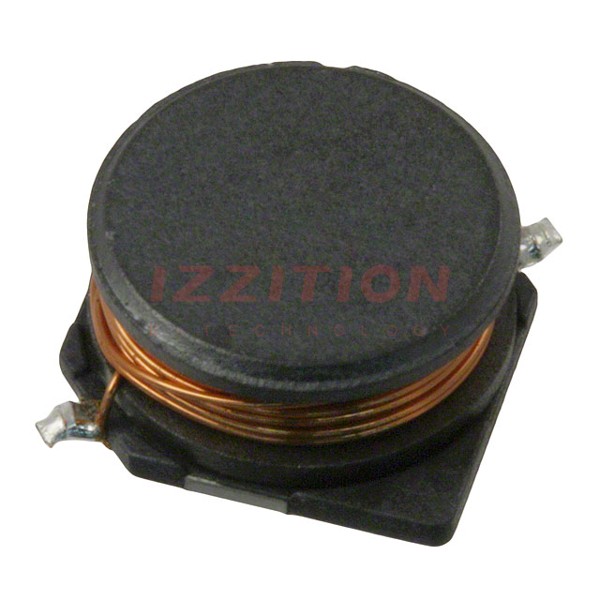

| Part Number | SDR1045-151K | SDR1045-101K |
|---|---|---|
| Manufacturer | Bourns Inc. | Bourns Inc. |
| Product Status | Active | Active |
| Type | Drum Core, Wirewound | Drum Core, Wirewound |
| Material - Core | Ferrite | Ferrite |
| Inductance | 150 µH | 100 µH |
| Tolerance | ±10% | ±10% |
| Current Rating (Amps) | 850 mA | 1.1 A |
| Current - Saturation (Isat) | 1.05A | 1.3A |
| Shielding | Unshielded | Unshielded |
| DC Resistance (DCR) | 700mOhm Max | 540mOhm Max |
| Q @ Freq | 16 @ 796kHz | 14 @ 796kHz |
| Frequency - Self Resonant | 7.1MHz | 9.7MHz |
| Ratings | - | - |
| Operating Temperature | -40°C ~ 125°C | -40°C ~ 125°C |
| Inductance Frequency - Test | 100 kHz | 100 kHz |
| Features | - | - |
| Mounting Type | Surface Mount | Surface Mount |
| Package / Case | Nonstandard | Nonstandard |
| Supplier Device Package | - | - |
| Size / Dimension | 0.394" L x 0.394" W (10.00mm x 10.00mm) | 0.394" L x 0.394" W (10.00mm x 10.00mm) |
| Height - Seated (Max) | 0.189" (4.80mm) | 0.189" (4.80mm) |
