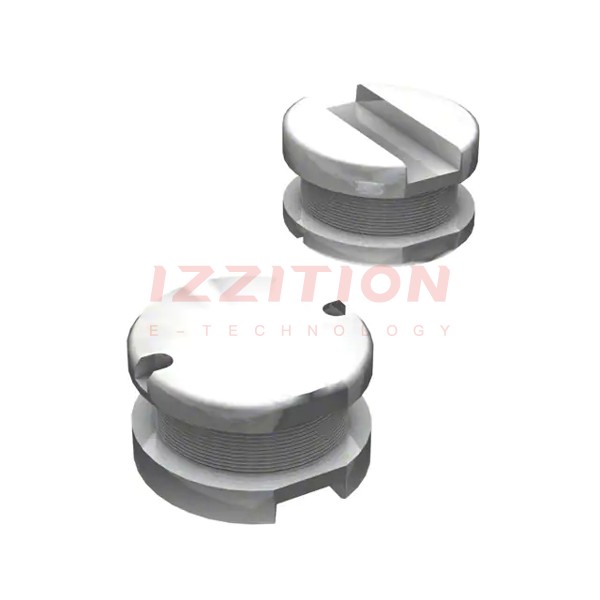

| Part Number | SDR1006-6R8ML | SDR1005-6R8ML |
|---|---|---|
| Manufacturer | Bourns Inc. | Bourns Inc. |
| Product Status | Active | Active |
| Type | Drum Core, Wirewound | Drum Core, Wirewound |
| Material - Core | Ferrite | Ferrite |
| Inductance | 6.8 µH | 6.8 µH |
| Tolerance | ±20% | ±20% |
| Current Rating (Amps) | 3.4 A | 3.4 A |
| Current - Saturation (Isat) | 5.9A | 4.5A |
| Shielding | Unshielded | Unshielded |
| DC Resistance (DCR) | 44mOhm Max | 30mOhm Max |
| Q @ Freq | 33 @ 7.96MHz | 56 @ 2MHz |
| Frequency - Self Resonant | 32MHz | 31MHz |
| Ratings | - | - |
| Operating Temperature | -40°C ~ 125°C | -40°C ~ 125°C |
| Inductance Frequency - Test | 1 kHz | 1 kHz |
| Features | - | - |
| Mounting Type | Surface Mount | Surface Mount |
| Package / Case | Nonstandard | Nonstandard |
| Supplier Device Package | - | - |
| Size / Dimension | 0.386" L x 0.386" W (9.80mm x 9.80mm) | 0.500" L x 0.394" W (12.70mm x 10.00mm) |
| Height - Seated (Max) | 0.228" (5.80mm) | 0.197" (5.00mm) |
