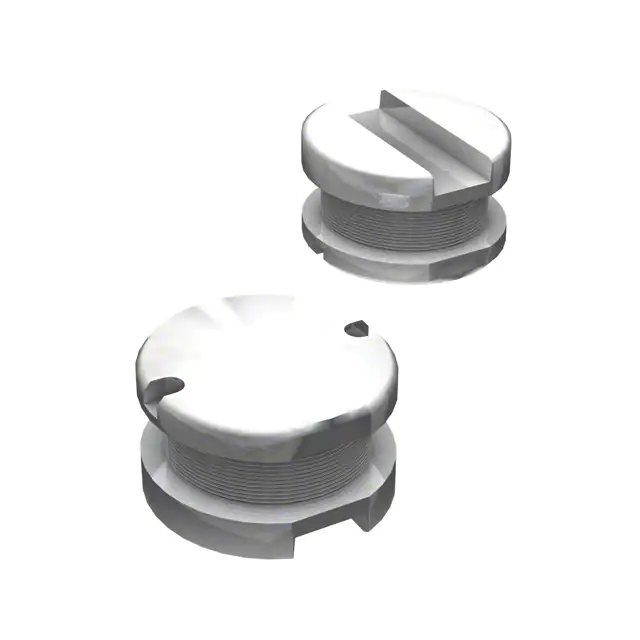

| Part Number | SDR1006-561KL | SDR1006-560KL |
|---|---|---|
| Manufacturer | Bourns Inc. | Bourns Inc. |
| Product Status | Active | Active |
| Type | Drum Core, Wirewound | Drum Core, Wirewound |
| Material - Core | Ferrite | Ferrite |
| Inductance | 560 µH | 56 µH |
| Tolerance | ±10% | ±10% |
| Current Rating (Amps) | 330 mA | 1.15 A |
| Current - Saturation (Isat) | 660mA | 2.1A |
| Shielding | Unshielded | Unshielded |
| DC Resistance (DCR) | 1.9Ohm Max | 190mOhm Max |
| Q @ Freq | 12 @ 796kHz | 20 @ 2.52MHz |
| Frequency - Self Resonant | 2.3MHz | 7.5MHz |
| Ratings | - | - |
| Operating Temperature | -40°C ~ 125°C | -40°C ~ 125°C |
| Inductance Frequency - Test | 1 kHz | 1 kHz |
| Features | - | - |
| Mounting Type | Surface Mount | Surface Mount |
| Package / Case | Nonstandard | Nonstandard |
| Supplier Device Package | - | - |
| Size / Dimension | 0.386" L x 0.386" W (9.80mm x 9.80mm) | 0.386" L x 0.386" W (9.80mm x 9.80mm) |
| Height - Seated (Max) | 0.228" (5.80mm) | 0.228" (5.80mm) |
