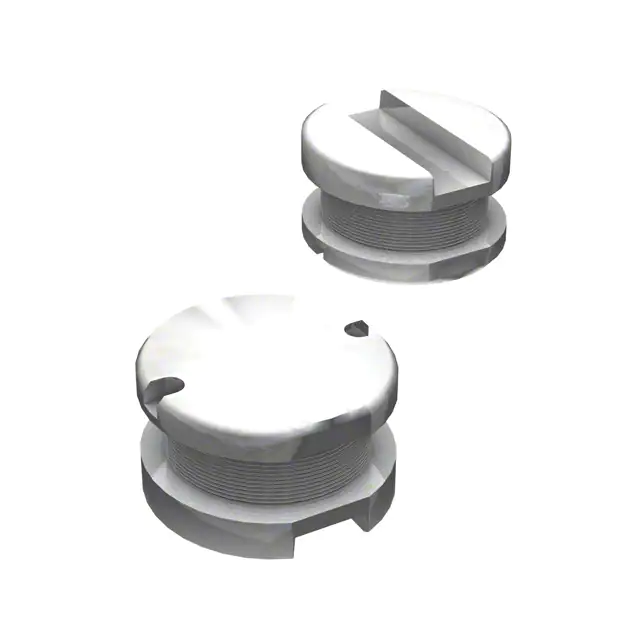

| Part Number | SDR1006-472KL | SDR1005-472KL | SDR1006-272KL | SDR1006-470KL | SDR1006-471KL |
|---|---|---|---|---|---|
| Manufacturer | Bourns Inc. | Bourns Inc. | Bourns Inc. | Bourns Inc. | Bourns Inc. |
| Product Status | Active | Active | Active | Active | Active |
| Type | Drum Core, Wirewound | Drum Core, Wirewound | Drum Core, Wirewound | Drum Core, Wirewound | Drum Core, Wirewound |
| Material - Core | Ferrite | Ferrite | Ferrite | Ferrite | Ferrite |
| Inductance | 4.7 mH | 4.7 mH | 2.7 mH | 47 µH | 470 µH |
| Tolerance | ±10% | ±10% | ±10% | ±10% | ±10% |
| Current Rating (Amps) | 100 mA | 150 mA | 140 mA | 1.25 A | 420 mA |
| Current - Saturation (Isat) | 240mA | 160mA | 330mA | 2.3A | 800mA |
| Shielding | Unshielded | Unshielded | Unshielded | Unshielded | Unshielded |
| DC Resistance (DCR) | 18Ohm Max | 17Ohm Max | 11.6Ohm Max | 170mOhm Max | 1.48Ohm Max |
| Q @ Freq | 32 @ 252kHz | 96 @ 125kHz | 32 @ 252kHz | 20 @ 2.52MHz | 12 @ 796kHz |
| Frequency - Self Resonant | 800kHz | 1MHz | 1.4MHz | 8MHz | 2.5MHz |
| Ratings | - | - | - | - | - |
| Operating Temperature | -40°C ~ 125°C | -40°C ~ 125°C | -40°C ~ 125°C | -40°C ~ 125°C | -40°C ~ 125°C |
| Inductance Frequency - Test | 1 kHz | 1 kHz | 1 kHz | 1 kHz | 1 kHz |
| Features | - | - | - | - | - |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | Nonstandard | Nonstandard | Nonstandard | Nonstandard | Nonstandard |
| Supplier Device Package | - | - | - | - | - |
| Size / Dimension | 0.386" L x 0.386" W (9.80mm x 9.80mm) | 0.500" L x 0.394" W (12.70mm x 10.00mm) | 0.386" L x 0.386" W (9.80mm x 9.80mm) | 0.386" L x 0.386" W (9.80mm x 9.80mm) | 0.386" L x 0.386" W (9.80mm x 9.80mm) |
| Height - Seated (Max) | 0.228" (5.80mm) | 0.197" (5.00mm) | 0.228" (5.80mm) | 0.228" (5.80mm) | 0.228" (5.80mm) |
