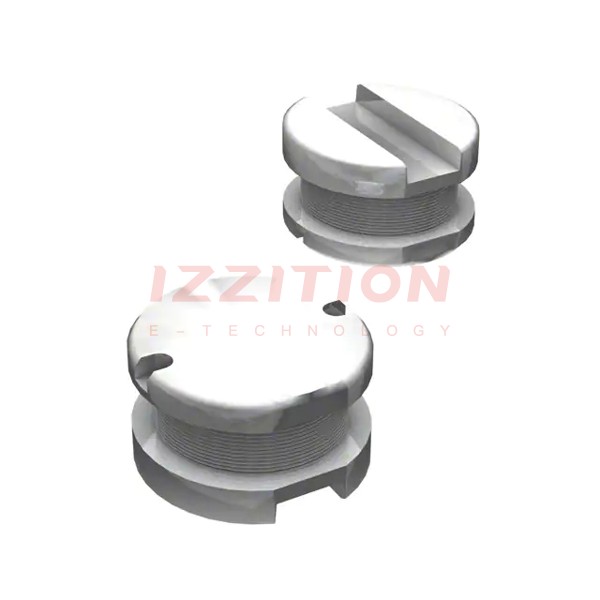

| Part Number | SDR1006-3R3ML | SDR1006-3R9ML | SDR1005-3R3ML |
|---|---|---|---|
| Manufacturer | Bourns Inc. | Bourns Inc. | Bourns Inc. |
| Product Status | Active | Active | Active |
| Type | Drum Core, Wirewound | Drum Core, Wirewound | Drum Core, Wirewound |
| Material - Core | Ferrite | Ferrite | Ferrite |
| Inductance | 3.3 µH | 3.9 µH | 3.3 µH |
| Tolerance | ±20% | ±20% | ±20% |
| Current Rating (Amps) | 5 A | 4.6 A | 5 A |
| Current - Saturation (Isat) | 10A | 8.4A | 6.4A |
| Shielding | Unshielded | Unshielded | Unshielded |
| DC Resistance (DCR) | 24mOhm Max | 27mOhm Max | 15mOhm Max |
| Q @ Freq | 34 @ 7.96MHz | 34 @ 7.96MHz | 45 @ 2.52MHz |
| Frequency - Self Resonant | 55MHz | 48MHz | 54MHz |
| Ratings | - | - | - |
| Operating Temperature | -40°C ~ 125°C | -40°C ~ 125°C | -40°C ~ 125°C |
| Inductance Frequency - Test | 1 kHz | 1 kHz | 1 kHz |
| Features | - | - | - |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | Nonstandard | Nonstandard | Nonstandard |
| Supplier Device Package | - | - | - |
| Size / Dimension | 0.386" L x 0.386" W (9.80mm x 9.80mm) | 0.386" L x 0.386" W (9.80mm x 9.80mm) | 0.500" L x 0.394" W (12.70mm x 10.00mm) |
| Height - Seated (Max) | 0.228" (5.80mm) | 0.228" (5.80mm) | 0.197" (5.00mm) |
