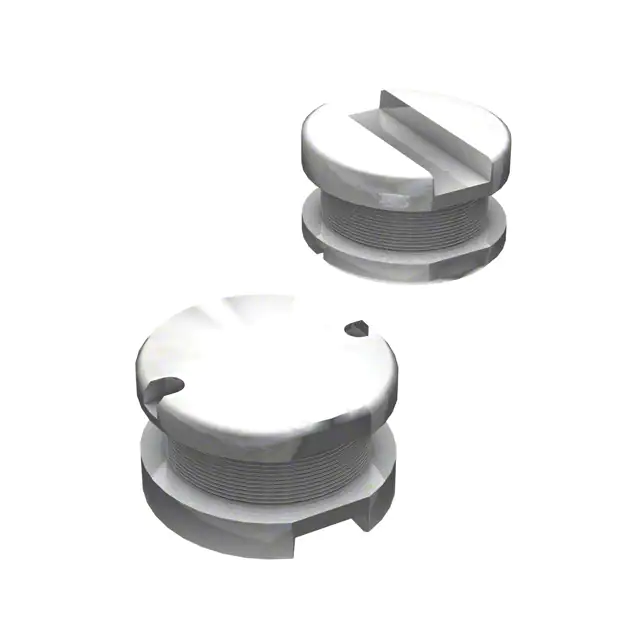

| Part Number | SDR1006-221KL | SDR1006-271KL | SDR1006-821KL | SDR1006-222KL | SDR1005-221KL | SDR1006-121KL |
|---|---|---|---|---|---|---|
| Manufacturer | Bourns Inc. | Bourns Inc. | Bourns Inc. | Bourns Inc. | Bourns Inc. | Bourns Inc. |
| Product Status | Active | Active | Active | Active | Active | Active |
| Type | Drum Core, Wirewound | Drum Core, Wirewound | Drum Core, Wirewound | Drum Core, Wirewound | Drum Core, Wirewound | Drum Core, Wirewound |
| Material - Core | Ferrite | Ferrite | Ferrite | Ferrite | Ferrite | Ferrite |
| Inductance | 220 µH | 270 µH | 820 µH | 2.2 mH | 220 µH | 120 µH |
| Tolerance | ±10% | ±10% | ±10% | ±10% | ±10% | ±10% |
| Current Rating (Amps) | 660 mA | 570 mA | 240 mA | 160 mA | 700 mA | 890 mA |
| Current - Saturation (Isat) | 1.1A | 1A | 560mA | 360mA | 800mA | 1.5A |
| Shielding | Unshielded | Unshielded | Unshielded | Unshielded | Unshielded | Unshielded |
| DC Resistance (DCR) | 730mOhm Max | 970mOhm Max | 2.55Ohm Max | 7.6Ohm Max | 780mOhm Max | 400mOhm Max |
| Q @ Freq | 12 @ 796kHz | 12 @ 796kHz | 10 @ 796kHz | 31 @ 252kHz | 50 @ 68kHz | 15 @ 796kHz |
| Frequency - Self Resonant | 3.8MHz | 3.5MHz | 2MHz | 1.5MHz | 5MHz | 5MHz |
| Ratings | - | - | - | - | - | - |
| Operating Temperature | -40°C ~ 125°C | -40°C ~ 125°C | -40°C ~ 125°C | -40°C ~ 125°C | -40°C ~ 125°C | -40°C ~ 125°C |
| Inductance Frequency - Test | 1 kHz | 1 kHz | 1 kHz | 1 kHz | 1 kHz | 1 kHz |
| Features | - | - | - | - | - | - |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | Nonstandard | Nonstandard | Nonstandard | Nonstandard | Nonstandard | Nonstandard |
| Supplier Device Package | - | - | - | - | - | - |
| Size / Dimension | 0.386" L x 0.386" W (9.80mm x 9.80mm) | 0.386" L x 0.386" W (9.80mm x 9.80mm) | 0.386" L x 0.386" W (9.80mm x 9.80mm) | 0.386" L x 0.386" W (9.80mm x 9.80mm) | 0.500" L x 0.394" W (12.70mm x 10.00mm) | 0.386" L x 0.386" W (9.80mm x 9.80mm) |
| Height - Seated (Max) | 0.228" (5.80mm) | 0.228" (5.80mm) | 0.228" (5.80mm) | 0.228" (5.80mm) | 0.197" (5.00mm) | 0.228" (5.80mm) |
