Please send RFQ , we will respond immediately.

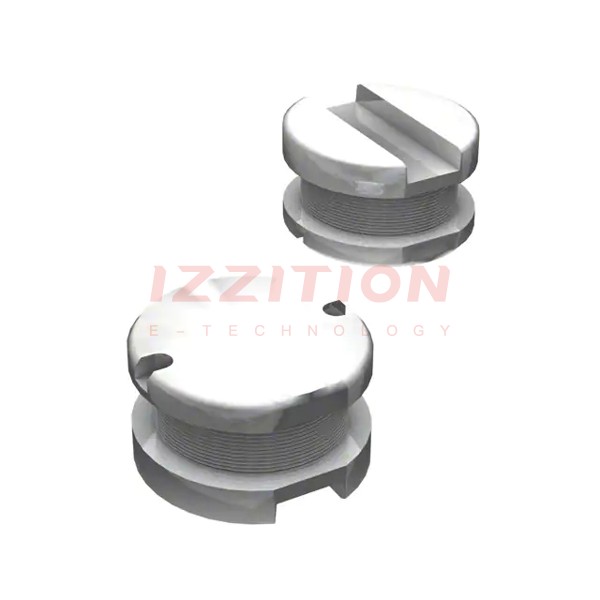

| Part Number | SDR1006-1R5ML | SDR1006-2R5ML | SDR1005-1R5ML |
|---|---|---|---|
| Manufacturer | Bourns Inc. | Bourns Inc. | Bourns Inc. |
| Product Status | Active | Active | Active |
| Type | Drum Core, Wirewound | Drum Core, Wirewound | Drum Core, Wirewound |
| Material - Core | Ferrite | Ferrite | Ferrite |
| Inductance | 1.5 µH | 2.5 µH | 1.5 µH |
| Tolerance | ±20% | ±20% | ±20% |
| Current Rating (Amps) | 6.4 A | - | 6.5 A |
| Current - Saturation (Isat) | 10A | - | 8A |
| Shielding | Unshielded | Unshielded | Unshielded |
| DC Resistance (DCR) | 18mOhm Max | - | 9mOhm Max |
| Q @ Freq | 35 @ 7.96MHz | - | 50 @ 3MHz |
| Frequency - Self Resonant | 105MHz | - | 95MHz |
| Ratings | - | - | - |
| Operating Temperature | -40°C ~ 125°C | -40°C ~ 125°C | -40°C ~ 125°C |
| Inductance Frequency - Test | 1 kHz | 1 kHz | 1 kHz |
| Features | - | - | - |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | Nonstandard | Nonstandard | Nonstandard |
| Supplier Device Package | - | - | - |
| Size / Dimension | 0.386" L x 0.386" W (9.80mm x 9.80mm) | 0.386" L x 0.386" W (9.80mm x 9.80mm) | 0.500" L x 0.394" W (12.70mm x 10.00mm) |
| Height - Seated (Max) | 0.228" (5.80mm) | 0.228" (5.80mm) | 0.197" (5.00mm) |
