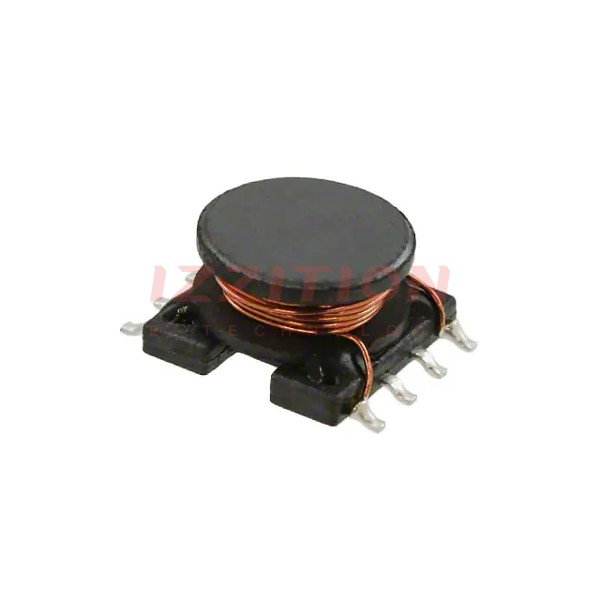

| Part Number | SDR0906-822KL | SDR0906-822YL | SDR0906-122KL | SDR0906-222KL | SDR0906-820KL | SDR0906-821KL |
|---|---|---|---|---|---|---|
| Manufacturer | Bourns Inc. | Bourns Inc. | Bourns Inc. | Bourns Inc. | Bourns Inc. | Bourns Inc. |
| Product Status | Active | Active | Active | Active | Active | Active |
| Type | Drum Core, Wirewound | Drum Core, Wirewound | Drum Core, Wirewound | Drum Core, Wirewound | Drum Core, Wirewound | Drum Core, Wirewound |
| Material - Core | Ferrite | Ferrite | Ferrite | Ferrite | Ferrite | Ferrite |
| Inductance | 8.2 mH | 8.2 mH | 1.2 mH | 2.2 mH | 82 µH | 820 µH |
| Tolerance | ±10% | ±15% | ±10% | ±10% | ±10% | ±10% |
| Current Rating (Amps) | 50 mA | 50 mA | 200 mA | 140 mA | 950 mA | 240 mA |
| Current - Saturation (Isat) | 120mA | 120mA | 280mA | 230mA | 1.3A | 360mA |
| Shielding | Unshielded | Unshielded | Unshielded | Unshielded | Unshielded | Unshielded |
| DC Resistance (DCR) | 28Ohm Max | 28Ohm Max | 4Ohm Max | 8Ohm Max | 330mOhm Max | 2.75Ohm Max |
| Q @ Freq | 100 @ 252kHz | 100 @ 252kHz | 60 @ 252kHz | 94 @ 252kHz | 20 @ 2.52MHz | 15 @ 796kHz |
| Frequency - Self Resonant | 1MHz | 1MHz | 2MHz | 2MHz | 9MHz | 3MHz |
| Ratings | - | - | - | - | - | - |
| Operating Temperature | -40°C ~ 125°C | -40°C ~ 125°C | -40°C ~ 125°C | -40°C ~ 125°C | -40°C ~ 125°C | -40°C ~ 125°C |
| Inductance Frequency - Test | 1 kHz | 1 kHz | 1 kHz | 1 kHz | 1 kHz | 1 kHz |
| Features | - | - | - | - | - | - |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | Nonstandard | Nonstandard | Nonstandard | Nonstandard | Nonstandard | Nonstandard |
| Supplier Device Package | - | - | - | - | - | - |
| Size / Dimension | 0.492" L x 0.413" W (12.50mm x 10.50mm) | 0.492" L x 0.413" W (12.50mm x 10.50mm) | 0.492" L x 0.413" W (12.50mm x 10.50mm) | 0.492" L x 0.413" W (12.50mm x 10.50mm) | 0.492" L x 0.413" W (12.50mm x 10.50mm) | 0.492" L x 0.413" W (12.50mm x 10.50mm) |
| Height - Seated (Max) | 0.248" (6.30mm) | 0.248" (6.30mm) | 0.248" (6.30mm) | 0.248" (6.30mm) | 0.248" (6.30mm) | 0.248" (6.30mm) |
