Please send RFQ , we will respond immediately.

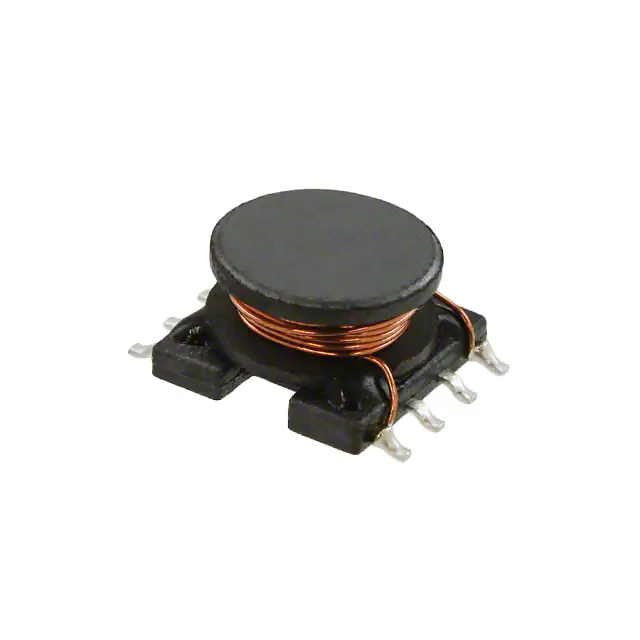

| Part Number | SDR0906-562KL | SDR0906-560KL | SDR0906-561KL |
|---|---|---|---|
| Manufacturer | Bourns Inc. | Bourns Inc. | Bourns Inc. |
| Product Status | Active | Active | Active |
| Type | Drum Core, Wirewound | Drum Core, Wirewound | Drum Core, Wirewound |
| Material - Core | Ferrite | Ferrite | Ferrite |
| Inductance | 5.6 mH | 56 µH | 560 µH |
| Tolerance | ±10% | ±10% | ±10% |
| Current Rating (Amps) | 70 mA | 1.05 A | 320 mA |
| Current - Saturation (Isat) | 150mA | 1.4A | 530mA |
| Shielding | Unshielded | Unshielded | Unshielded |
| DC Resistance (DCR) | 20Ohm Max | 260mOhm Max | 2.1Ohm Max |
| Q @ Freq | 100 @ 252kHz | 25 @ 2.52MHz | 15 @ 796kHz |
| Frequency - Self Resonant | 1MHz | 12MHz | 4MHz |
| Ratings | - | - | - |
| Operating Temperature | -40°C ~ 125°C | -40°C ~ 125°C | -40°C ~ 125°C |
| Inductance Frequency - Test | 1 kHz | 1 kHz | 1 kHz |
| Features | - | - | - |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | Nonstandard | Nonstandard | Nonstandard |
| Supplier Device Package | - | - | - |
| Size / Dimension | 0.492" L x 0.413" W (12.50mm x 10.50mm) | 0.492" L x 0.413" W (12.50mm x 10.50mm) | 0.492" L x 0.413" W (12.50mm x 10.50mm) |
| Height - Seated (Max) | 0.248" (6.30mm) | 0.248" (6.30mm) | 0.248" (6.30mm) |
